Mil-Spec Wire MIL-W-16878/3 Type D (M16878/3)
M16878/3 is designed to meet MIL-SPEC standards.
More option: M16878/1 Type B, M16878/2 Type C
Request a Quote for MIL-W-16878/3 Type D (M16878/3)
MIL-W-16878/3 Type D Wire (M16878/3 Wire)
- Conductor: Stranded Tinned Copper
- Insulation: Polyvinylchloride (PVC)
- Rated temperature： 105 ℃
- Rated Voltage：1000V
- Passes UL VW-1 Flame Test
- RoHS Compliant

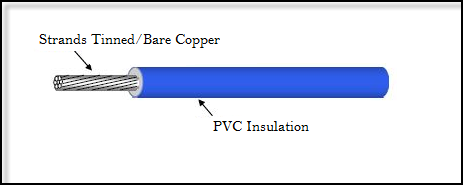

Wire Structure Description:
Conductor: Stranded Tinned Copper
Insulation: PVC（Polyvinylchloride）Insulation
| Military Number | AWG Size | Stranding | Conductor Diameter | Insulated Thickness Nominal | Finished Wire Diameter | |||||
| Min | Max | |||||||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||
| M16878/3BEB* | 24 | 7/32 | .0240 | 0.610 | .0311 | 0.79 | .0750 | 1.905 | .0900 | 2.286 |
| M16878/3BEE* | 24 | 19/36 | .0260 | 0.660 | .0311 | 0.79 | .0750 | 1.905 | .0900 | 2.286 |
| M16878/3BFB* | 22 | 7/30 | .0300 | 0.762 | .0311 | 0.79 | .0810 | 2.057 | .0960 | 2.438 |
| M16878/3BFE* | 22 | 19/34 | .0320 | 0.813 | .0311 | 0.79 | .0810 | 2.057 | .0960 | 2.438 |
| M16878/3BGB* | 20 | 7/28 | .0380 | 0.965 | .0311 | 0.79 | .0890 | 2.261 | .1040 | 2.642 |
| M16878/3BGE* | 20 | 19/32 | .0410 | 1.041 | .0311 | 0.79 | .0890 | 2.261 | .1040 | 2.642 |
| M16878/3BHB* | 18 | 7/26 | .0490 | 1.245 | .0311 | 0.79 | .1000 | 2.540 | .1150 | 2.921 |
| M16878/3BHE* | 18 | 19/30 | .0510 | 1.295 | .0311 | 0.79 | .1000 | 2.540 | .1150 | 2.921 |
| M16878/3BJE* | 16 | 19/29 | .0590 | 1.499 | .0311 | 0.79 | .1100 | 2.794 | .1250 | 3.175 |
| M16878/3BJF* | 16 | 26/30 | .0620 | 1.575 | .0311 | 0.79 | .1130 | 2.870 | .1280 | 3.251 |
| M16878/3BKE* | 14 | 19/27 | .0720 | 1.829 | .0311 | 0.79 | .1230 | 3.124 | .1380 | 3.505 |
| M16878/3BKH* | 14 | 41/30 | .0800 | 2.032 | .0311 | 0.79 | .1310 | 3.327 | .1460 | 3.708 |
| M16878/3BLE* | 12 | 19/25 | .0920 | 2.337 | .0370 | 0.94 | .1560 | 3.962 | .1710 | 4.343 |
| M16878/3BLJ* | 12 | 65/30 | .0980 | 2.489 | .0370 | 0.94 | .1620 | 4.115 | .1770 | 4.496 |
| M16878/3BMG* | 10 | 37/26 | .1110 | 2.819 | .0370 | 0.94 | .1750 | 4.445 | .0190 | 4.826 |
| M16878/3BMK* | 10 | 105/30 | .1270 | 3.226 | .0370 | 0.94 | .1910 | 4.851 | .2060 | 5.232 |
| M16878/3BNL* | 8 | 133/29 | .1690 | 4.293 | .0402 | 1.02 | .2410 | 6.121 | .2560 | 6.502 |
| M16878/3BPL* | 6 | 133/27 | .2130 | 5.410 | .0402 | 1.02 | .2860 | 7.264 | .3010 | 7.645 |
| M16878/3BRL* | 4 | 133/25 | .2680 | 6.807 | .0449 | 1.14 | .3480 | 8.839 | .3680 | 9.347 |
| M16878/3BSP* | 2 | 665/30 | .3420 | 8.687 | .0449 | 1.14 | .4220 | 10.719 | .4420 | 11.227 |
| M16878/3BTR* | 1 | 817/30 | .3820 | 9.703 | .0500 | 1.27 | .4720 | 11.989 | .4920 | 12.497 |
| M16878/3BUS* | 0 | 1045/30 | .4310 | 10.947 | .0520 | 1.32 | .5250 | 13.335 | .5450 | 13.843 |
