Mil-Spec Wire MIL-W-16878/1 Type B (M16878/1)
Military harnessing, power supply lead wire, appliance wiring, and medical electronic devices.
More Option: M16878/2 Type C, M16878/3 Type D
Request a Quote for MIL-W-16878/1 Type B (M16878/1)
MIL-W-16878/1 Type B Wire (M16878/1)
- Insulation: Polyvinylchloride (PVC)
- Conductor: Solid or Stranded Tinned Copper
- Rated temperature： 105 ℃
- Rated Voltage：600V
- Passes UL VW-Flame Test
- RoHS Compliant

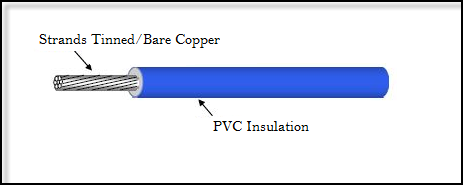

Wire Structure Description:
Conductor: Stranded Tinned Copper
Insulation: PVC（Polyvinylchloride）Insulation, .010 Nominal Wall Insulation Thickness.
| Military Number | AWG Size | Stranding | Conductor Diameter | Insulated Thickness Nominal | Finished Wire Diameter |
|||||
| Min | Max |
|||||||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm |
|||
| M16878/1BBB* | 30 | 7/38 | .0120 | 0.305 | .0100 | 0.25 | .0280 | 0.711 | .0340 | 0.864 |
| M16878/1BCB* | 28 | 7/36 | .0150 | 0.381 | .0100 | 0.25 | .0310 | 0.787 | .0370 | 0.94 |
| M16878/1BDB* | 26 | 7/34 | .0190 | 0.483 | .0100 | 0.25 | .0350 | 0.889 | .0410 | 1.041 |
| M16878/1BDE* | 26 | 19/38 | .0210 | 0.533 | .0100 | 0.25 | .0350 | 0.889 | .0410 | 1.041 |
| M16878/1BEB* | 24 | 7/32 | .0240 | 0.61 | .0100 | 0.25 | .0400 | 1.016 | .0470 | 1.194 |
| M16878/1BEE* | 24 | 19/36 | .0260 | 0.66 | .0100 | 0.25 | .0400 | 1.016 | .0470 | 1.194 |
| M16878/1BFB* | 22 | 30/7 | .0300 | 0.762 | .0100 | 0.25 | .0460 | 1.168 | .0530 | 1.346 |
| M16878/1BFE* | 22 | 19/34 | .0320 | 0.813 | .0100 | 0.25 | .0460 | 1.168 | .0530 | 1.346 |
| M16878/1BGB* | 20 | 28/7 | .0380 | 0.965 | .0100 | 0.25 | .0540 | 1.372 | .0610 | 1.549 |
| M16878/1BGE* | 20 | 19/32 | .0410 | 1.041 | .0100 | 0.25 | .0540 | 1.372 | .0610 | 1.549 |
| M16878/1BHB* | 18 | 26/7 | .0490 | 1.245 | .0100 | 0.25 | .0650 | 1.651 | .0720 | 1.829 |
| M16878/1BHE* | 18 | 19/30 | .0510 | 1.295 | .0100 | 0.25 | .0650 | 1.651 | .0720 | 1.829 |
| M16878/1BJE* | 16 | 19/29 | .0590 | 1.499 | .0100 | 0.25 | .0750 | 1.905 | .0830 | 2.108 |
| M16878/1BKE* | 14 | 19/27 | .0720 | 1.829 | .0100 | 0.25 | .0880 | 2.235 | .0960 | 2.438 |
