Electronic Hook Up Wire , PVC Insulated Wire UL AWM Style 1007/1569 105C 300V CSA Type TR-64 90C
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80C or 105C Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for UL AWM Style 1007/1569 105C 300V CSA Type TR-64 90C

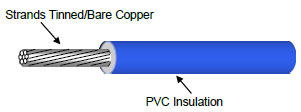

- Conductor material of tinned or bare copper
- Operating temperature -45°C to 105°C
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
- Meets MIL-W-16878/1B
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per R : equest
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 1 | 259 | 25 | .3331 | 8.46 | .4236 | 10.76 | 0.1300 | 0.4268 | 288.91 | 429.83 |
| 2 | 259 | 26 | .2854 | 7.25 | .3760 | 9.55 | 0.1641 | 0.5384 | 217.04 | 322.91 |
| 4 | 133 | 25 | .2386 | 6.06 | .3291 | 8.36 | 0.2608 | 0.8559 | 156.47 | 232.80 |
| 6 | 266 | 30 | .1882 | 4.78 | .2787 | 7.08 | 0.4148 | 1.361 | 102.65 | 152.72 |
| 8 | 168 | 30 | .1496 | 3.80 | .2402 | 6.10 | 0.6795 | 2.23 | 69.13 | 102.85 |
| 10 | 105 | 30 | .1181 | 3.00 | .2087 | 5.30 | 1.08 | 3.55 | 46.97 | 69.89 |
| 12 | 65 | 30 | .0933 | 2.37 | .1839 | 4.67 | 1.72 | 5.64 | 32.47 | 48.31 |
| 14 | 41 | 30 | .0740 | 1.88 | .1646 | 4.18 | 2.73 | 8.96 | 23.37 | 34.77 |
| 16 | 26 | 30 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 17.42 | 25.92 |
| 18 | 16 | 30 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 13.21 | 19.66 |
| 20 | 10 | 30 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.70 | 15.92 |
