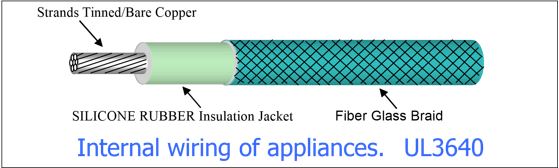

High Temperature Wire , Silicone Insulated Wire Style UL3640 Hook-up Wire
Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 180 ℃.
Request a Quote for Style UL3640 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 180 ℃
- Rated Voltage 1100V (Spark voltage 10000V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
| Inch | mm | Inch | mm | 1000-ft | Km | |||
| 2/0 | 1330 | 30 | .4827 | 12.26 | .5827 | 14.80 | 0.08 | 0.28 |
| 1/0 | 1045 | 30 | .4283 | 10.88 | .5283 | 13.42 | 0.11 | 0.35 |
| 1 | 836 | 30 | .3827 | 9.72 | .4827 | 12.26 | 0.13 | 0.44 |
| 2 | 665 | 30 | .3378 | 8.58 | .4378 | 11.12 | 0.17 | 0.56 |
| 4 | 420 | 30 | .2685 | 6.82 | .3685 | 9.36 | 0.27 | 0.88 |
| 6 | 266 | 30 | .2130 | 5.41 | .3130 | 7.95 | 0.43 | 1.40 |
| 8 | 168 | 30 | .1496 | 3.80 | .2500 | 6.35 | 0.68 | 2.23 |
| 10 | 105 | 30 | .1181 | 3.00 | .2185 | 5.55 | 1.08 | 3.55 |
| 12 | 65 | 30 | .0929 | 2.36 | .1929 | 4.90 | 1.72 | 5.64 |
| 14 | 41 | 30 | .0740 | 1.88 | .1740 | 4.42 | 2.73 | 8.96 |
| 16 | 26 | 30 | .0591 | 1.50 | .1594 | 4.05 | 4.45 | 14.60 |
