High Temperature Wire , Silicone Insulated Wire Style UL3644 Hook-up Wire

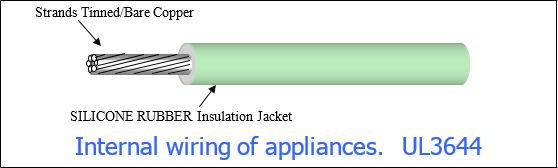

Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 200 ℃.
Request a Quote for Style UL3644 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 200 ℃
- Rated Voltage 1000V (Spark voltage 10000V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
| Inch | mm | Inch | mm | 1000-ft | Km | |||
| 10 | 105 | 30 | .1181 | 3.00 | .1811 | 4.60 | 1.08 | 3.54 |
| 12 | 65 | 30 | .0929 | 2.36 | .1559 | 3.96 | 1.72 | 5.64 |
| 14 | 41 | 30 | .0748 | 1.90 | .1378 | 3.50 | 2.73 | 8.96 |
| 16 | 26 | 30 | .0591 | 1.50 | .1220 | 3.10 | 4.45 | 14.60 |
| 18 | 16 | 30 | .0461 | 1.17 | .1091 | 2.77 | 7.07 | 23.20 |
| 20 | 21 | 33 | .0374 | 0.95 | .1004 | 2.55 | 11.19 | 36.70 |
| 20 | 7 | 28 | .0374 | 0.95 | .1004 | 2.55 | 11.19 | 36.70 |
| 22 | 17 | 34 | .0299 | 0.76 | .0929 | 2.36 | 18.11 | 59.40 |
| 22 | 7 | 30 | .0299 | 0.76 | .0929 | 2.36 | 18.11 | 59.40 |
| 24 | 11 | 34 | .0236 | 0.60 | .0866 | 2.20 | 28.72 | 94.20 |
| 24 | 7 | 32 | .0236 | 0.60 | .0866 | 2.20 | 28.72 | 94.20 |
| 26 | 7 | 34 | .0189 | 0.48 | .0827 | 2.10 | 45.73 | 150.00 |
| 28 | 7 | 36 | .01520 | 0.38 | .0787 | 2.00 | 72.87 | 239.00 |
| 28 | 1 | 28 | .0126 | 0.32 | .0756 | 1.92 | 6.77 | 22.20 |
| 30 | 7 | 30 | .0100 | 0.25 | .0728 | 1.85 | 110.06 | 361.00 |
