Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3569 Hook-up Wire

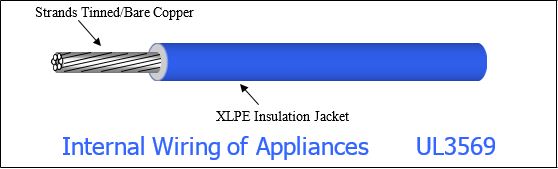

Internal wiring of electronic equipment.
Request a Quote for Style UL3569 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .6299 | 16.00 | 0.05248 | 0.1722 | 683.40 | 1016.77 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .5713 | 14.51 | 0.06688 | 0.2194 | 545.09 | 810.98 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .5276 | 13.40 | 0.0814 | 0.2670 | 451.71 | 672.06 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .4760 | 12.09 | 0.1026 | 0.3367 | 353.90 | 526.54 |
| 1 | 259 | 25 | .3331 | 8.46 | .4433 | 11.26 | 0.1300 | 0.4268 | 297.44 | 442.54 |
| 2 | 259 | 26 | .2854 | 7.25 | .3760 | 9.55 | 0.1641 | 0.5384 | 217.04 | 322.91 |
| 4 | 133 | 25 | .2386 | 6.06 | .3291 | 8.36 | 0.2608 | 0.8559 | 156.47 | 232.8 |
| 6 | 266 | 30 | .1882 | 4.78 | .2787 | 7.08 | 0.4148 | 1.361 | 102.65 | 152.72 |
| 8 | 168 | 30 | .1496 | 3.80 | .2402 | 6.10 | 0.6795 | 2.23 | 69.13 | 102.85 |
| 10 | 105 | 30 | .1181 | 3.00 | .1969 | 5.00 | 1.08 | 3.55 | 44.58 | 66.32 |
| 12 | 65 | 30 | .0933 | 2.37 | .1720 | 4.37 | 1.72 | 5.64 | 30.37 | 45.18 |
| 14 | 41 | 30 | .0740 | 1.88 | .1528 | 3.88 | 2.73 | 8.96 | 21.50 | 31.98 |
| 16 | 26 | 30 | .0591 | 1.50 | .1378 | 3.50 | 4.45 | 14.6 | 15.72 | 23.39 |
| 18 | 1 | 18 | .0402 | 1.02 | .1189 | 3.02 | 6.77 | 22.2 | 11.21 | 16.67 |
| 18 | 16 | 30 | .0465 | 1.18 | .1252 | 3.18 | 7.06 | 23.2 | 11.67 | 17.36 |
| 20 | 1 | 20 | .0320 | 0.813 | .1107 | 2.81 | 10.7 | 35.2 | 8.76 | 13.04 |
| 20 | 21 | 33 | .0374 | 0.95 | .1161 | 2.95 | 11.2 | 36.7 | 9.28 | 13.81 |
| 22 | 17 | 34 | .0299 | 0.76 | .1087 | 2.76 | 18.1 | 59.4 | 7.53 | 11.20 |
| 24 | 7 | 32 | .0240 | 0.61 | .1028 | 2.61 | 28.7 | 94.2 | 6.32 | 9.41 |
| 24 | 11 | 34 | .0240 | 0.61 | .1028 | 2.61 | 28.7 | 94.2 | 6.33 | 9.42 |
| 26 | 7 | 34 | .0197 | 0.50 | .0984 | 2.50 | 45.8 | 150 | 5.50 | 8.19 |
| 28 | 1 | 28 | .0126 | 0.32 | .0913 | 2.32 | 69.3 | 227 | 4.58 | 6.82 |
| 28 | 7 | 36 | .0154 | 0.39 | .0941 | 2.39 | 72.8 | 239 | 4.85 | 7.21 |
| 30 | 1 | 30 | .0100 | 0.254 | .0887 | 2.25 | 110 | 361 | 4.2 | 6.24 |
