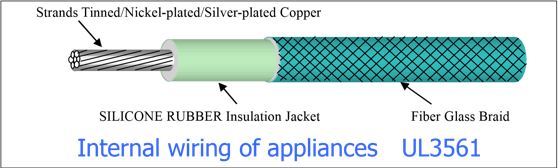

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3561 Hook-up Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3561 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 200 ℃
- Rated Voltage 5000 V (Spark voltage 10000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
| Inch | mm | Inch | mm | 1000-ft | Km | |||
| 12 | 65 | 30 | .0929 | 2.36 | .1890 | 4.80 | 1.72 | 5.64 |
| 14 | 41 | 30 | .0748 | 1.90 | .1713 | 4.35 | 2.73 | 8.96 |
| 14 | 19 | 27 | .0748 | 1.90 | .1713 | 4.35 | 2.73 | 8.96 |
| 16 | 26 | 30 | .0591 | 1.50 | .1555 | 3.95 | 4.45 | 14.60 |
| 16 | 19 | 29 | .0591 | 1.50 | .1555 | 3.95 | 4.45 | 14.60 |
| 18 | 16 | 30 | .0453 | 1.15 | .1417 | 3.60 | 7.07 | 23.20 |
| 18 | 7 | 26 | .0453 | 1.15 | .1417 | 3.60 | 7.07 | 23.20 |
