EPDM Insulated Wire Style UL3484 Hook-up Wire

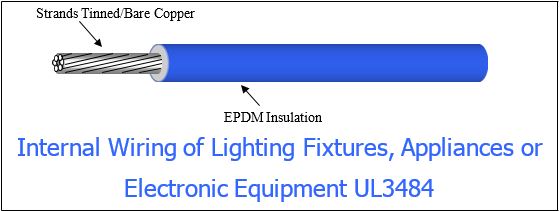

Internal wiring of electronic equipment.
Request a Quote for Style UL3484 Hook-up Wire
oduct Specification :
- Conductor material of Tinned or Bare copper
- Rated temperature 125℃
- Rated Voltage 600 V (Spark voltage 4000 V~12500)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per R : equest
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | MM | Inch | MM | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km |
|||
| 4/0 | 259 | 21 | .6008 | 15.26 | .7583 | 19.26 | 0.05248 | 0.1722 | 751.78 | 1118.49 |
| 3/0 | 259 | 22 | .5335 | 13.55 | .6909 | 17.55 | 0.06688 | 0.2194 | 604.98 | 900.09 |
| 2/0 | 259 | 23 | .4764 | 12.10 | .6339 | 16.10 | 0.0814 | 0.2670 | 492.71 7 | 733.05 |
| 1/0 | 259 | 24 | .4240 | 10.77 | .5815 | 14.77 | 0.1026 | 0.3367 | 400.39 | 595.70 |
| 1 | 259 | 25 | .3780 | 9.60 | .5354 | 13.60 | 0.1300 | 0.4268 | 326.60 | 485.91 |
| 2 | 259 | 26 | .3354 | 8.52 | .4551 | 11.56 | 0.1641 | 0.5384 | 248.08 | 369.10 |
| 4 | 133 | 25 | .2705 | 6.87 | .3902 | 9.91 | 0.2608 | 0.8559 | 170.32 | 253.39 |
| 6 | 266 | 30 | .2138 | 5.43 | .3335 | 8.47 | 0.4148 | 1.361 | 114.27 | 170.01 |
| 8 | 168 | 30 | .1496 | 3.80 | .2402 | 6.10 | 0.6795 | 2.23 | 69.13 | 102.85 |
| 10 | 105 | 30 | .1181 | 3.00 | .1795 | 4.60 | 1.08 | 3.55 | 41.32 | 61.47 |
| 12 | 168 | 34 | .0945 | 2.40 | .1575 | 4.00 | 1.72 | 5.64 | 28.37 | 42.20 |
| 14 | 105 | 34 | .0748 | 1.90 | .1378 | 3.50 | 2.73 | 8.96 | 19.47 | 28.96 |
| 16 | 65 | 34 | .0591 | 1.50 | .1220 | 3.10 | 4.45 | 14.6 | 13.61 | 20.25 |
| 18 | 41 | 34 | .0465 | 1.18 | .1079 | 2.78 | 7.06 | 23.2 | 9.73 | 14.47 |
| 20 | 26 | 34 | .0374 | 0.95 | .1004 | 2.55 | 11.2 | 36.7 | 7.50 | 11.16 |
| 22 | 17 | 34 | .0299 | 0.76 | .0913 | 2.35 | 18.1 | 59.4 | 5.79 | 8.62 |
| 24 | 11 | 34 | .0240 | 0.61 | .0854 | 2.20 | 28.7 | 94.2 | 4.70 | 6.99 |
| 26 | 7 | 34 | 0197 | 0.50 | .0811 | 2.10 | 45.8 | 150 | 3.95 | 5.87 |
| 28 | 7 | 36 | .0154 | 0.39 | .0768 | 1.98 | 72.8 | 239 | 3.37 | 5.01 |
| 30 | 1 | 30 | .0100 | 0.254 | .0714 | 1.81 | 110 | 361 | 2.81 | 4.18 |
