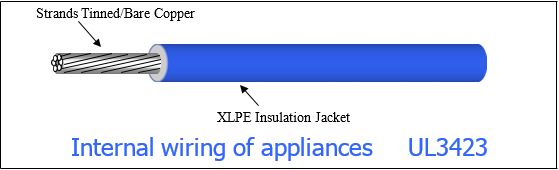

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3423 Hook-up Wire

UL3423 Internal wiring of Appliances or electronic equipment where exposed to temperature not exceeding 125℃

Request a Quote for Style UL3423 Hook-up Wire
  • Conductor material of Tinned or Bare copper
  • Rated temperature 125 ℃<
  • Rated Voltage 300 V
  • Flame resistance FT2
  • RoHS Compliant

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands		Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor		Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
16
7
25
.0591
1.50
.0906
2.30
4.45
14.6
10.74
15.93
16
26
30
.0591
1.50
.0906
2.30
4.45
14.6
10.35
15.36
16
19
29
.0591
1.50
.0906
2.30
4.45
14.6
10.49
15.59
18
1
18
.0402
1.02
.0717
1.82
6.77
22.2
6.72
9.97
18
7
26
.0465
1.18
.0780
1.98
7.06
23.2
7.03
10.44
18
16
30
.0465
1.18
.0780
1.98
7.06
23.2
6.87
10.21
18
19
31
.0465
1.18
.0780
1.98
7.06
23.2
6.96
10.33
20
1
20
.0320
0.813
.0635
1.61
10.7
35.2
4.66
6.91
20
10
30
.0374
0.95
.0689
1.75
11.2
36.7
4.90
7.27
20
19
33
.0374
0.95
.0689
1.75
11.2
36.7
4.95
7.34
20
21
33
.0374
0.95
.0689
1.75
11.2
36.7
4.93
7.30
22
7
30
.0299
0.76
.0614
1.56
18.1
59.4
3.37
5.54
22
17
34
.0299
0.76
.0614
1.56
18.1
59.4
3.51
5.22
24
11
34
.0240
0.61
.0555
1.41
28.7
94.2
2.61
3.85
26
7
34
.0197
0.50
.0512
1.30
45.8
150
1.97
2.93
28
7
36
.0154
0.39
.0469
1.19
72.8
239
1.52
2.26
30
1
30
.0100
0.254
.0415
1.05
110
361
1.15
1.66
