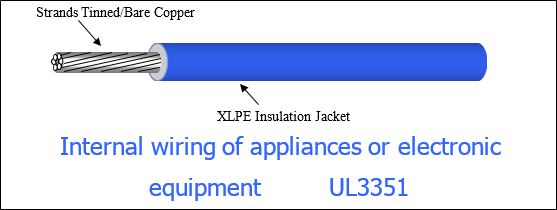

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3351 Hook-up Wire

Internal wiring of electronic equipment.

Request a Quote for Style UL3351 Hook-up Wire
  • Conductor material of Tinned or Bare copper
  • Rated temperature 125 ℃
  • Rated Voltage 600 V (Spark voltage 6000 V)
  • Flame resistance FT2
  • RoHS Compliant

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands
Gauge of
Strands (AWG)
Nom. Dia. of
Stranded Conductor
Nom. Fin.
Wire Diam.
Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
Inch
mm
Inchmm1000-ftKmLBS./ 1000 ft.Kg/Km
4/0
259
21
.5197
13.20
.6772
17.20
0.05248
0.1722
714.30
1062.74
3/0
259
22
.4610
11.71
.6185
15.71
0.06688
0.2194
573.21
852.83
2/0
259
23
.4173
10.60
.5748
14.60
0.0814
0.2670
477.77
710.83
1/0
259
24
.3657
9.29
.5232
13.29
0.1026
0.3367
377.53
561.68
1
259
25
.3295
8.37
.4870
12.37
0.1300
0.4268
314.46
466.70
2
259
26
.2854
7.25
.4051
10.29
0.1641
0.5384
228.42
339.85
4
133
25
.2386
6.06
.3583
9.10
0.2608
0.8559
166.50
247.71
6
266
30
.1882
4.78
.3079
7.82
0.4148
1.361
111.20
165.45
8
168
30
.1496
3.80
.2402
6.10
0.6795
2.23
69.30
102.85
10
105
30
.1181
3.00
.1795
4.56
1.08
3.55
41.41
61.47
12
65
30
.0933
2.37
.1547
3.93
1.72
5.64
27.60
40.97
14
41
30
.0740
1.88
.1354
3.44
2.73
8.96
19.05
28.26
16
26
30
.0591
1.50
.1205
3.06
4.45
14.6
13.52
20.06
18
1
18
.0402
1.02
.1016
2.58
6.77
22.2
9.32
13.83
18
16
30
.0465
1.18
.1079
2.74
7.06
23.2
9.66
14.35
20
1
20
.0320
0.813
.0934
2.37
10.7
35.2
7.00
10.41
20
21
33
.0374
0.95
.0988
2.51
11.2
36.7
7.42
11.04
22
17
34
.0299
0.76
.0913
2.32
18.1
59.4
5.81
8.62
24
7
32
.0240
0.61
.0854
2.17
28.7
94.2
4.71
6.98
24
11
34
.0240
0.61
.0854
2.17
28.7
94.2
4.71
6.99
26
7
34
.0197
0.50
.0811
2.06
45.8
150
3.95
5.87
28
1
28
.0126
0.32
.0740
1.88
69.3
227
3.15
4.68
28
7
36
.0154
0.39
.0768
1.95
72.8
239
3.37
5.01
30
1
30
.0100
0.254
.0714
1.81
110
361
2.81
4.18
