Electronic Hook Up Wire Style UL3328 Hook-up Wire
Internal wiring of Appliances or electronic equipments where exposed to temperature not exceeding 125℃
Request a Quote for Style UL3328 Hook-up Wire

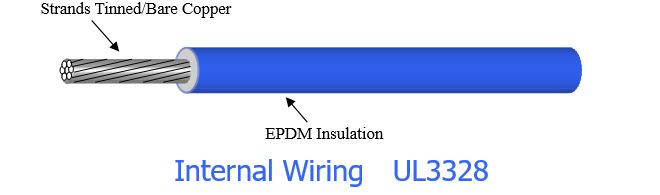

- Conductor material of Tinned or Bare copper
- Rated temperature 125 ℃
- Rated Voltage 600 V
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Conductor Size (No./mm) +0.005mm | Dia. of Conductor | Nom. Fin. Wire Diam. | Conductor resistance 20℃ (Ω/Km) |
||
| Inch | MM | Inch | MM | |||
| 16 | 26/0.254 | 0.0590 | 1.50 | 0.1791 | 4.55 | 14.60 |
| 18 | 16/0.254 | 0.046 | 1.17 | 0.1661 | 4.22 | 23.20 |
