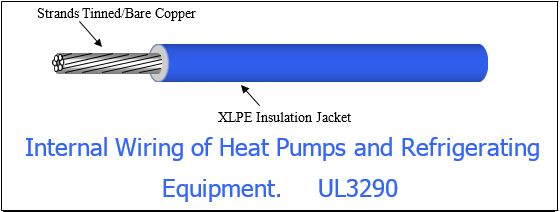

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3290 Hook-up Wire

Internal wiring of electronic equipment.

Request a Quote for Style UL3290 Hook-up Wire
  • Conductor material of Tinned or Bare copper
  • Rated temperature 125 ℃
  • Rated Voltage 600 V (Spark voltage 6000 V)
  • Flame resistance FT2
  • RoHS Compliant

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands		Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor		Nom. Fin.
Wire Diam.
Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
9
88
29
.1280
3.25
.2476
6.29
0.8574
2.81
60.10
89.42
10
105
30
.1181
3.00
.2378
6.04
1.08
3.55
53.48
79.57
10
19
23
.1209
3.07
.2406
6.11
1.08
3.55
55.22
82.15
12
65
30
.0933
2.37
.2130
5.41
1.72
5.64
38.26
56.92
12
19
25
.0906
2.30
.2102
5.34
1.72
5.64
36.69
54.59
14
41
30
.0740
1.88
.1937
4.92
2.73
8.96
28.59
42.54
14
19
27
.0740
1.88
.1937
4.92
2.73
8.96
28.65
42.63
16
7
25
.0591
1.50
.1787
4.54
4.45
14.6
22.55
33.55
16
26
30
.0591
1.50
.1787
4.54
4.45
14.6
22.21
33.04
18
1
18
.0402
1.02
.1598
4.06
6.77
22.2
16.92
25.17
18
7
26
.0465
1.18
.1661
4.22
7.06
23.2
17.79
26.47
18
16
30
.0465
1.18
.1661
4.22
7.06
23.2
17.63
26.24
20
1
20
.0320
0.813
.1517
3.85
10.7
35.2
14.14
21.04
20
10
30
.0374
0.95
.1571
3.99
11.2
36.7
14.86
22.11
20
21
33
.0374
0.95
.1571
3.99
11.2
36.7
14.88
22.14
22
17
34
.0299
0.76
.1496
3.80
18.1
59.4
12.82
19.07
22
7
30
.0311
0.79
.1508
3.83
18.1
59.4
13.14
19.55
24
7
32
.0240
0.61
.1437
3.65
28.7
94.2
11.37
16.92
24
11
34
.0240
0.61
.1437
3.65
28.7
94.2
11.38
16.93
26
7
34
.0197
0.50
.1394
3.54
45.8
150
10.38
15.44
