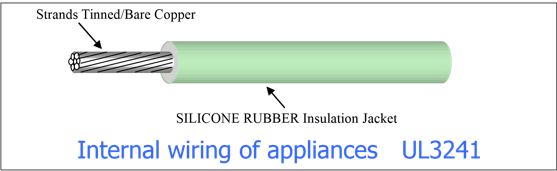

High Temperature Wire , Silicone Insulated Wire Style UL3241 High Temperature Wire

Internal wiring of electronic equipment

Request a Quote for Style UL3241 High Temperature Wire
  • Conductor material of Tinned, Nickel or Silvered copper
  • “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33
  • Rated temperature 200 ℃
  • Rated Voltage 300 V (Spark voltage 3000 V) Flame resistance FT2
  • RoHS Compliant

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands		Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor		Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per		Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
*14
41
30
.0740
1.88
.1370
3.48
2.73
8.96
18.74
27.88
*14
19
27
.0740
1.88
.1370
3.48
2.73
8.96
18.80
27.97
16
7
25
.0591
1.50
.1220
3.10
4.45
14.6
13.61
20.25
*16
19
29
.0591
1.50
.1220
3.10
4.45
14.6
13.42
19.97
*16
26
30
.0591
1.50
.1220
3.10
4.45
14.6
13.27
19.74
*16
54
33
.0591
1.50
.1220
3.10
4.45
14.6
13.61
20.25
18
1
18
.0402
1.02
.1031
2.62
6.77
22.2
9.13
13.59
18
7
26
.0465
1.18
.1094
2.78
7.06
23.2
9.62
14.31
*18
16
30
.0465
1.18
.1094
2.78
7.06
23.2
9.47
14.08
*18
19
31
.0465
1.18
.1094
2.78
7.06
23.2
9.55
14.20
*18
34
33
.0476
1.21
.1106
2.81
7.06
23.2
9.86
14.67
*18
41
34
.0465
1.18
.1094
2.78
7.06
23.2
9.55
14.20
20
1
20
.0320
0.813
.0950
2.41
10.7
35.2
6.86
10.20
*20
10
30
.0374
0.95
.1004
2.55
11.2
36.7
7.24
10.78
*20
19
33
.0374
0.95
.1004
2.55
11.2
36.7
7.29
10.85
*20
21
33
.0374
0.95
.1004
2.55
11.2
36.7
7.26
10.81
*22
17
34
.0299
0.76
.0929
2.36
18.1
59.4
5.66
8.42
*22
7
30
.0299
0.76
.0929
2.36
18.1
59.4
5.66
8.42
*24
7
32
.0240
0.61
.0870
2.21
28.7
94.2
4.58
6.81
*24
11
34
.0240
0.61
.0870
2.21
28.7
94.2
4.59
6.82
