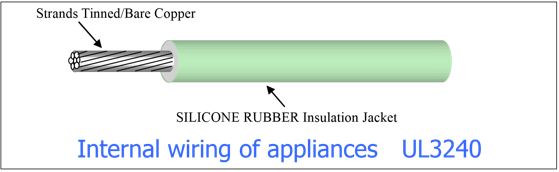

High Temperature Wire , Silicone Insulated Wire Style UL3240 High Temperature Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3240 High Temperature Wire
- Conductor material of Tinned, Nickel or Silvered copper
- “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33
- Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V) Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| *10 | 105 | 30 | .1181 | 3.00 | .2087 | 5.30 | 1.08 | 3.55 | 45.92 | 68.31 |
| *12 | 65 | 30 | .0933 | 2.37 | .1839 | 4.67 | 1.72 | 5.64 | 31.58 | 46.98 |
| *14 | 41 | 30 | .0740 | 1.88 | .1646 | 4.18 | 2.73 | 8.96 | 22.60 | 33.62 |
| *14 | 19 | 27 | .0740 | 1.88 | .1646 | 4.18 | 2.73 | 8.96 | 22.66 | 33.71 |
| 16 | 7 | 25 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 17.09 | 25.43 |
| *16 | 19 | 29 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 16.90 | 25.14 |
| *16 | 26 | 30 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 16.74 | 24.91 |
| *16 | 54 | 33 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 17.09 | 25.42 |
| 18 | 1 | 18 | .0402 | 1.02 | .1307 | 3.32 | 6.77 | 22.2 | 12.13 | 18.05 |
| 18 | 7 | 26 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 12.78 | 19.01 |
| *18 | 16 | 30 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 12.62 | 18.78 |
| *18 | 19 | 31 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 12.70 | 18.90 |
| *18 | 34 | 33 | .0476 | 1.21 | .1382 | 3.51 | 7.06 | 23.2 | 13.05 | 19.42 |
| *18 | 41 | 34 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 12.70 | 18.90 |
| 20 | 1 | 20 | .0320 | 0.813 | .1226 | 3.11 | 10.7 | 35.2 | 9.64 | 14.35 |
| *20 | 10 | 30 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.17 | 15.13 |
| *20 | 19 | 33 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.21 | 15.20 |
| *20 | 21 | 33 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.19 | 15.16 |
| *22 | 17 | 34 | .0299 | 0.76 | .1205 | 3.06 | 18.1 | 59.4 | 8.39 | 12.49 |
| *22 | 7 | 30 | .0311 | 0.79 | .1217 | 3.09 | 18.1 | 59.4 | 8.67 | 12.91 |
| *24 | 7 | 32 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.16 | 10.65 |
| *24 | 11 | 34 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.17 | 10.66 |
| *26 | 7 | 34 | .0197 | 0.50 | .1102 | 2.80 | 45.8 | 150 | 6.32 | 9.40 |
