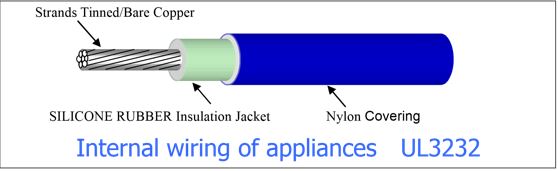

High Temperature Wire , Silicone Insulated Wire Style UL3232 Hook-up Wire

Internal wiring of electronic equipment

Request a Quote for Style UL3232 Hook-up Wire
  • Conductor material of Tinned or bare copper
  • Rated temperature150 ℃
  • Rated Voltage 300 V (Spark voltage 3000 V)
  • Flame resistance FT2
  • RoHS Compliant

Colors Available:0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)
Number of
Strands		Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor		Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per		Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
16
7
25
.0591
1.50
.0906
2.30
4.45
14.6
10.50
15.62
16
19
29
.0591
1.50
.0906
2.30
4.45
14.6
10.31
15.34
16
26
30
.0591
1.50
.0906
2.30
4.45
14.6
10.15
15.11
16
54
33
.0591
1.50
.0906
2.30
4.45
14.6
10.5
15.62
18
1
18
.0402
1.02
.0717
1.82
6.77
22.2
6.58
9.78
18
7
26
.0465
1.18
.0780
1.98
7.06
23.2
6.88
10.23
18
16
30
.0465
1.18
.0780
1.98
7.06
23.2
6.72
10.00
18
19
31
.0465
1.18
.0780
1.98
7.06
23.2
6.80
10.12
18
34
33
.0476
1.21
.0791
2.01
7.06
23.2
7.09
10.54
18
41
34
.0465
1.18
.0780
1.98
7.06
23.2
6.80
10.12
19
30
33
.0449
1.14
.0764
1.94
7.06
23.2
6.39
9.51
20
1
20
.0320
0.813
.0635
1.61
10.7
35.2
4.54
6.75
20
7
29
.0362
0.92
.0677
1.72
11.2
36.7
4.51
6.71
20
10
30
.0374
0.95
.0689
1.75
11.2
36.7
4.77
7.09
20
19
33
.0374
0.95
.0689
1.75
11.2
36.7
4.81
7.16
20
21
33
.0374
0.95
.0689
1.75
11.2
36.7
4.79
7.12
22
7
30
.0311
0.79
.0626
1.59
18.1
59.4
3.62
5.38
22
17
34
.0299
0.76
.0614
1.56
18.1
59.4
3.40
5.06
24
7
32
.0240
0.61
.0555
1.41
28.7
94.2
2.49
3.71
24
11
34
.0240
0.61
.0555
1.41
28.7
94.2
2.50
3.72
26
7
34
.0197
0.50
.0512
1.30
45.8
150
1.89
2.81
