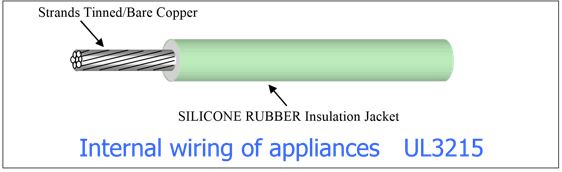

High Temperature Wire , Silicone Insulated Wire Style UL3215 High Temperature Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3215 High Temperature Wire
- Conductor material of Tinned, or bare copper
- Rated temperature 150 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands(AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 16 | 7 | 25 | .0591 | 1.50 | .1787 | 4.54 | 4.45 | 14.6 | 21.34 | 31.76 |
| 16 | 19 | 29 | .0591 | 1.50 | .1787 | 4.54 | 4.45 | 14.6 | 21.34 | 31.76 |
| 16 | 26 | 30 | .0591 | 1.50 | .1787 | 4.54 | 4.45 | 14.6 | 21.19 | 31.53 |
| 16 | 54 | 33 | .0591 | 1.50 | .1787 | 4.54 | 4.45 | 14.6 | 21.66 | 32.23 |
| 18 | 1 | 18 | .0402 | 1.02 | .1598 | 4.06 | 6.77 | 22.2 | 16.06 | 23.90 |
| 18 | 7 | 26 | .0465 | 1.18 | .1661 | 4.22 | 7.06 | 23.2 | 16.88 | 25.11 |
| 18 | 16 | 30 | .0465 | 1.18 | .1661 | 4.22 | 7.06 | 23.2 | 16.72 | 24.88 |
| 18 | 19 | 31 | .0465 | 1.18 | .1661 | 4.22 | 7.06 | 23.2 | 16.81 | 25.00 |
| 18 | 34 | 33 | .0476 | 1.21 | .1673 | 4.25 | 7.06 | 23.2 | 17.19 | 25.57 |
| 18 | 41 | 34 | .0465 | 1.18 | .1661 | 4.22 | 7.06 | 23.2 | 16.81 | 25.01 |
