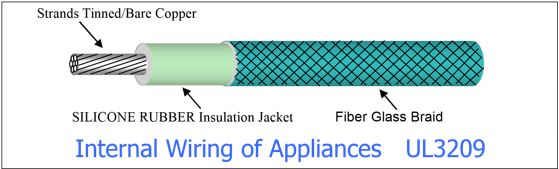

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3209 High Temperature Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3209 High Temperature Wire
- Conductor material of Tinned, Nickel or Silvered copper
- “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33 Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km |
|||
| *12 | 65 | 30 | .0933 | 2.37 | .2311 | 5.87 | 1.72 | 5.64 | 40.68 | 60.53 |
| *14 | 41 | 30 | .0740 | 1.88 | .2118 | 5.38 | 2.73 | 8.96 | 30.86 | 45.92 |
| *14 | 19 | 27 | .0740 | 1.88 | .2118 | 5.38 | 2.73 | 8.96 | 30.92 | 46.00 |
| 16 | 7 | 25 | .0591 | 1.50 | .1980 | 5.03 | 4.45 | 14.6 | 24.85 | 36.97 |
| *16 | 19 | 29 | .0591 | 1.50 | .1969 | 5.00 | 4.45 | 14.6 | 24.50 | 36.46 |
| *16 | 26 | 30 | .0591 | 1.50 | .1969 | 5.00 | 4.45 | 14.6 | 24.35 | 36.23 |
| *16 | 54 | 33 | .0591 | 1.50 | .1980 | 5.03 | 4.45 | 14.6 | 24.84 | 36.96 |
| 18 | 1 | 18 | .0402 | 1.02 | .1780 | 4.52 | 6.77 | 22.2 | 18.91 | 28.13 |
| 18 | 7 | 26 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.83 | 29.50 |
| *18 | 16 | 30 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.67 | 29.27 |
| *18 | 19 | 31 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.75 | 29.39 |
| *18 | 41 | 34 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.76 | 29.39 |
