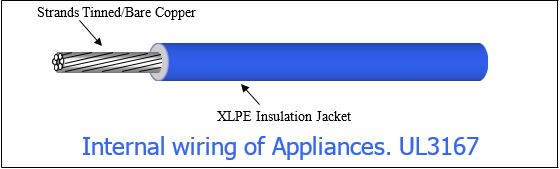

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3167 Hook-up Wire
Internal wiring of electronic equipment.
Request a Quote for Style UL3167 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
9 | 88 | 29 | .1280 | 3.25 | .1909 | 4.85 | 0.8574 | 2.81 | 47.66 | 70.91 |
10 | 105 | 30 | .1181 | 3.00 | .1811 | 4.60 | 1.08 | 3.55 | 41.60 | 61.89 |
12 | 65 | 30 | .0933 | 2.37 | .1563 | 3.97 | 1.72 | 5.64 | 27.78 | 41.33 |
14 | 41 | 30 | .0740 | 1.88 | .1370 | 3.48 | 2.73 | 8.96 | 19.21 | 28.58 |
14 | 19 | 27 | .0740 | 1.88 | .1370 | 3.48 | 2.73 | 8.96 | 19.27 | 28.67 |
16 | 7 | 25 | .0591 | 1.50 | .1232 | 3.13 | 4.45 | 14.6 | 14.09 | 20.97 |
16 | 26 | 30 | .0591 | 1.50 | .1220 | 3.10 | 4.45 | 14.6 | 13.67 | 20.34 |
18 | 1 | 18 | .0402 | 1.02 | .1031 | 2.62 | 6.77 | 22.2 | 9.46 | 14.07 |
18 | 7 | 26 | .0465 | 1.18 | .1094 | 2.78 | 7.06 | 23.2 | 9.97 | 14.83 |
18 | 16 | 30 | .0465 | 1.18 | .1094 | 2.78 | 7.06 | 23.2 | 9.82 | 14.60 |
20 | 1 | 20 | .0320 | 0.813 | .0950 | 2.41 | 10.7 | 35.2 | 7.14 | 10.63 |
20 | 10 | 30 | .0374 | 0.95 | .1004 | 2.55 | 11.2 | 36.7 | 7.55 | 11.24 |
20 | 21 | 33 | .0374 | 0.95 | .1004 | 2.55 | 11.2 | 36.7 | 7.57 | 11.27 |
22 | 17 | 34 | .0299 | 0.76 | .0929 | 2.36 | 18.1 | 59.4 | 5.94 | 8.84 |
22 | 7 | 30 | .0299 | 0.76 | .0941 | 2.39 | 18.1 | 59.4 | 6.19 | 9.21 |
24 | 7 | 32 | .0240 | 0.61 | .0870 | 2.21 | 28.7 | 94.2 | 4.83 | 7.18 |
24 | 11 | 34 | .0240 | 0.61 | .0870 | 2.21 | 28.7 | 94.2 | 4.84 | 7.20 |
26 | 7 | 34 | .0197 | 0.50 | .0827 | 2.10 | 45.8 | 150 | 4.08 | 6.07 |
