Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3126 Hook-up Wire

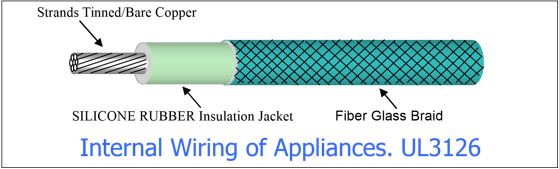

Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 200℃
Request a Quote for Style UL3126 Hook-up Wire
- Conductor material of Tinned, Nickel or Silvered copper
- Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .6890 | 17.50 | 0.0525 | 0.1722 | 715.06 | 1063.87 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .6303 | 16.01 | 0.0669 | 0.2194 | 573.99 | 853.98 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .5866 | 14.90 | 0.0814 | 0.2670 | 478.56 | 712.01 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .5350 | 13.59 | 0.1026 | 0.3367 | 378.33 | 562.88 |
| 1 | 259 | 25 | .3331 | 8.46 | .5024 | 12.76 | 0.1300 | 0.4268 | 320.34 | 476.59 |
