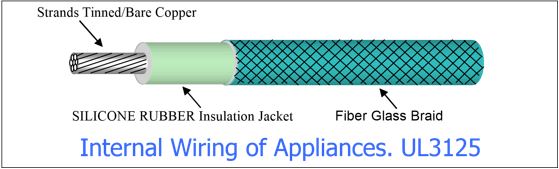

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3125 Hook-up Wire
Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 200℃
Request a Quote for Style UL3125 Hook-up Wire
- Conductor material of Tinned, Nickel or Silvered copper
- “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33 Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge(AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 2 | 259 | 26 | .2854 | 7.25 | .4169 | 10.59 | 0.1641 | 0.5384 | 229.98 | 342.17 |
| 4 | 133 | 25 | .2386 | 6.06 | .3701 | 9.40 | 0.2608 | 0.8559 | 167.94 | 249.86 |
| 6 | 266 | 30 | .1882 | 4.78 | .3197 | 8.12 | 0.4148 | 1.361 | 112.52 | 167.41 |
| 8 | 168 | 30 | .1496 | 3.80 | .2811 | 7.14 | 0.6795 | 2.23 | 77.79 | 115.73 |
