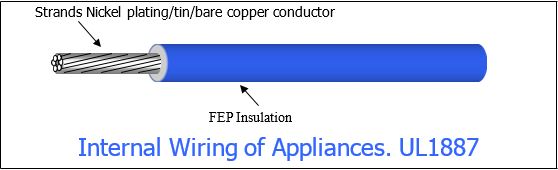

High Temperature Wire , FEP Insulated Wire Style UL1887 Hook-up Wire
Internal wiring of appliances and electronic equipment.
Request a Quote for Style UL1887 Hook-up Wire
- Conductor material of Silvered or Nickel copper
- Rated temperature 150 ℃
- Rated voltage 600 V (Spark voltage6000 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .5811 | 14.76 | 0.0525 | 0.1722 | 673.15 | 1001.51 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .5224 | 13.27 | 0.0669 | 0.2194 | 535.64 | 796.93 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .4787 | 12.16 | 0.0814 | 0.2670 | 442.87 | 658.9 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .4272 | 10.85 | 0.1026 | 0.3367 | 345.77 | 514.43 |
| 1 | 259 | 25 | .3331 | 8.46 | .3945 | 10.02 | 0.1300 | 0.4268 | 289.76 | 431.10 |
| 2 | 259 | 26 | .2854 | 7.25 | .3248 | 8.25 | 0.1641 | 0.5384 | 205.96 | 306.42 |
| 4 | 133 | 25 | .2386 | 6.06 | .2780 | 7.06 | 0.2608 | 0.8559 | 146.74 | 218.32 |
| 6 | 266 | 30 | .1882 | 4.78 | .2276 | 5.78 | 0.4148 | 1.361 | 94.36 | 140.39 |
| 8 | 168 | 30 | .1496 | 3.80 | .1890 | 4.80 | 0.6795 | 2.23 | 61.95 | 92.17 |
| 10 | 19 | 23 | .1209 | 3.07 | .1484 | 3.77 | 1.08 | 3.55 | 39.67 | 59.03 |
| 12 | 19 | 25 | .0906 | 2.30 | .1181 | 3.00 | 1.72 | 5.64 | 23.41 | 34.82 |
| 14 | 19 | 27 | .0740 | 1.88 | .1016 | 2.58 | 2.73 | 8.96 | 16.60 | 24.69 |
| 16 | 7 | 25 | .0591 | 1.50 | .0866 | 2.20 | 4.45 | 14.6 | 11.61 | 17.27 |
| 16 | 19 | 29 | .0591 | 1.50 | .0866 | 2.20 | 4.45 | 14.6 | 11.42 | 16.99 |
| 18 | 7 | 26 | .0465 | 1.18 | .0740 | 1.88 | 7.06 | 23.2 | 7.67 | 11.41 |
| 18 | 19 | 31 | .0465 | 1.18 | .0740 | 1.88 | 7.06 | 23.2 | 7.71 | 11.47 |
| 20 | 7 | 29 | .0374 | 0.95 | .0650 | 1.65 | 11.2 | 36.7 | 5.31 | 7.90 |
| 20 | 19 | 33 | .0374 | 0.95 | .0650 | 1.65 | 11.2 | 36.7 | 5.58 | 8.30 |
| 22 | 7 | 30 | .0299 | 0.76 | .0587 | 1.49 | 11.2 | 36.7 | 4.19 | 6.24 |
| 22 | 19 | 35 | .0299 | 0.76 | .0575 | 1.46 | 18.1 | 59.4 | 4.01 | 5.97 |
| 24 | 7 | 32 | .0240 | 0.61 | .0516 | 1.31 | 28.7 | 94.2 | 2.97 | 4.42 |
| 24 | 19 | 36 | .0240 | 0.61 | .0516 | 1.31 | 28.7 | 94.2 | 3.17 | 4.71 |
| 26 | 7 | 34 | .0197 | 0.50 | .0472 | 1.20 | 28.7 | 94.2 | 2.30 | 3.42 |
| 26 | 19 | 38 | .0197 | 0.50 | .0472 | 1.20 | 45.8 | 150 | 2.42 | 3.60 |
| 28 | 1 | 28 | .0126 | 0.32 | .0402 | 1.02 | 28.7 | 94.2 | 1.63 | 2.42 |
| 30 | 1 | 30 | .0100 | 0.254 | .0376 | 0.95 | 110 | 361 | 1.34 | 1.99 |
