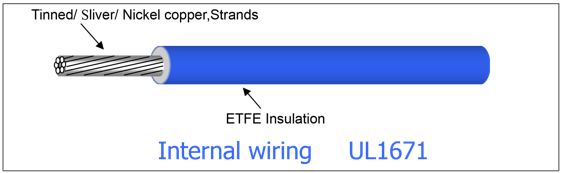

High Temperature Wire , ETFE Insulated Wire Style UL1671 Hook-up Wire
Internal wiring of Appliances or electronic equipment.
Request a Quote for Style UL1671 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 150℃
- Rated voltage 300V (Spark voltage 3000 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 19 | 23 | .1138 | 2.89 | .1335 | 3.39 | 1.08 | 3.55 | 33.55 | 49.92 |
| 12 | 19 | 25 | .0902 | 2.29 | .1098 | 2.79 | 1.72 | 5.64 | 21.77 | 32.40 |
| 12 | 65 | 30 | .0929 | 2.36 | .1126 | 2.86 | 1.72 | 5.64 | 23.09 | 34.36 |
| 14 | 19 | 27 | .0740 | 1.88 | .0937 | 2.38 | 2.73 | 8.96 | 15.22 | 22.64 |
| 14 | 41 | 30 | .0740 | 1.88 | .0937 | 2.38 | 2.73 | 8.96 | 15.16 | 22.55 |
| 16 | 1 | 16 | .0512 | 1.30 | .0709 | 1.80 | 4.26 | 14.0 | 9.91 | 14.75 |
| 16 | 19 | 29 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 10.25 | 15.25 |
| 16 | 26 | 30 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 10.10 | 15.02 |
| 18 | 1 | 18 | .0402 | 1.02 | .0598 | 1.52 | 6.77 | 22.2 | 6.49 | 9.65 |
| 18 | 7 | 26 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.80 | 10.12 |
| 18 | 19 | 31 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.73 | 10.01 |
| 20 | 1 | 20 | .0320 | 0.81 | .0517 | 1.31 | 10.7 | 35.2 | 4.43 | 6.60 |
| 20 | 7 | 29 | .0362 | 0.92 | .0559 | 1.42 | 11.2 | 36.7 | 4.42 | 6.57 |
| 20 | 19 | 33 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.72 | 7.02 |
| 22 | 1 | 22 | .0252 | 0.64 | .0449 | 1.14 | 17.2 | 56.4 | 3.03 | 4.51 |
| 22 | 7 | 30 | .0311 | 0.79 | .0508 | 1.29 | 18.1 | 59.4 | 3.51 | 5.23 |
| 22 | 19 | 35 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 3.26 | 4.85 |
| 24 | 1 | 24 | .0201 | 0.51 | .0398 | 1.01 | 27.3 | 89.3 | 2.16 | 3.22 |
| 24 | 7 | 32 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.38 | 3.54 |
| 24 | 19 | 36 | .0252 | 0.64 | .0449 | 1.14 | 28.7 | 94.2 | 2.54 | 3.78 |
| 26 | 1 | 26 | .0157 | 0.40 | .0354 | 0.90 | 43.5 | 143 | 1.55 | 2.31 |
| 26 | 7 | 34 | .0197 | 0.50 | .0394 | 1.00 | 45.8 | 150 | 1.77 | 2.63 |
| 26 | 19 | 38 | .0197 | 0.50 | .0394 | 1.00 | 45.8 | 150 | 1.82 | 2.70 |
| 28 | 1 | 28 | .0126 | 0.32 | .0323 | 0.82 | 69.3 | 227 | 1.18 | 1.76 |
| 30 | 1 | 30 | .0100 | 0.25 | .0297 | 0.75 | 110 | 361 | 0.92 | 1.37 |
