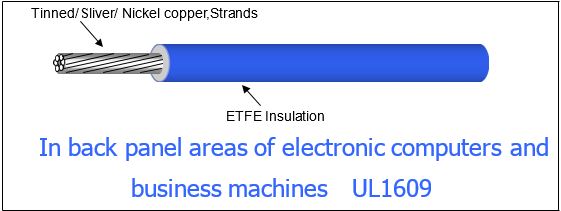

High Temperature Wire , ETFE Insulated Wire Style UL1609 Hook-up Wire

Internal wiring of Appliances or electronic equipment

Request a Quote for Style UL1609 Hook-up Wire
  • Conductor material of Tinned,Nickel or Silver copper
  • Rated temperature 105 ℃
  • Rated voltage 125 V (Spark voltage 1500V)
  • Flame resistance VW-1 or FT1
  • RoHS Compliant

Colors Available:  0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow

Striping:  Longitudinal and Parallel Stripes Available Per Request

Delivery:  All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems

Package:  Stocked in Spools, Barrel Pack Available Per Request

Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands
Gauge of
Strands (AWG)
Nom. Dia. of
Stranded Conductor
Nom. Fin.
Wire Diam.
Max. Resistance
(dc at 20°C) Ohm/per
Inch
mmInchmm1000-ftKm
10
19
23
.1205
3.06
.1465
3.72
1.08
3.54
12
19
25
.0929
2.36
.1189
3.02
1.72
5.64
14
19
27
.0728
1.85
.0988
2.51
2.73
8.96
16
19
29
.0591
1.50
.0748
1.90
4.45
14.6
18
1
18
.0402
1.02
.0559
1.42
6.77
22.2
18
7
26
.0465
1.18
.0630
1.60
7.07
23.2
18
19
31
.0465
1.18
.0630
1.60
7.07
23.2
20
1
20
.0320
0.81
.0437
1.11
10.73
35.2
20
7
29
.0374
0.95
.0492
1.25
11.19
36.7
20
19
33
.0374
0.95
.0492
1.25
11.19
36.7
22
1
22
.0252
0.64
.0374
0.95
17.20
56.4
22
7
30
.0299
0.76
.0413
1.05
18.11
59.4
22
19
35
.0299
0.76
.0413
1.05
18.11
59.4
24
1
24
.0201
0.51
.0319
0.81
27.23
89.3
24
7
32
.0236
0.60
.0354
0.90
28.72
94.2
24
19
36
.0236
0.60
.0354
0.90
28.72
94.2
26
7
34
.0189
0.48
.0307
0.78
45.73
150
28
1
28
.0126
0.32
.0244
0.62
69.21
227
28
7
36
.0150
0.38
.0268
0.68
72.87
239
30
1
30
.0100
0.25
.0217
0.55
110
361
