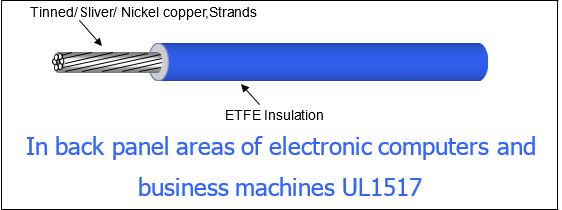

High Temperature Wire , ETFE Insulated Wire Style UL1517 Hook-up Wire
Internal wiring of Appliances or electronic equipment.
Request a Quote for Style UL1517 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 105℃
- Rated voltage (V not specified)(Spark voltage 2000V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 20 | 1 | 20 | .0320 | 0.81 | .0462 | 1.17 | 10.7 | 35.2 | 4.01 | 5.97 |
| 20 | 7 | 29 | .0362 | 0.92 | .0504 | 1.28 | 11.2 | 36.7 | 3.96 | 5.89 |
| 20 | 19 | 33 | .0374 | 0.95 | .0516 | 1.31 | 11.2 | 36.7 | 4.25 | 6.32 |
| 22 | 1 | 22 | .0252 | 0.64 | .0394 | 1.00 | 17.2 | 56.4 | 2.66 | 3.96 |
| 22 | 7 | 30 | .0311 | 0.79 | .0453 | 1.15 | 18.1 | 59.4 | 3.10 | 4.61 |
| 22 | 19 | 35 | .0299 | 0.76 | .0441 | 1.12 | 18.1 | 59.4 | 2.85 | 4.25 |
| 24 | 1 | 24 | .0201 | 0.51 | .0343 | 0.87 | 27.3 | 89.3 | 1.84 | 2.74 |
| 24 | 7 | 32 | .0240 | 0.61 | .0382 | 0.97 | 28.7 | 94.2 | 2.02 | 3.01 |
| 24 | 19 | 36 | .0252 | 0.64 | .0394 | 1.00 | 28.7 | 94.2 | 2.17 | 3.24 |
| 26 | 1 | 26 | .0157 | 0.40 | .0299 | 0.76 | 43.5 | 143 | 1.27 | 1.89 |
| 26 | 7 | 34 | .0197 | 0.50 | .0339 | 0.86 | 45.8 | 150 | 1.45 | 2.15 |
| 26 | 19 | 38 | .0197 | 0.50 | .0339 | 0.86 | 45.8 | 150 | 1.50 | 2.23 |
| 28 | 1 | 28 | .0126 | 0.32 | .0268 | 0.68 | 69.3 | 227 | 0.93 | 1.38 |
| 30 | 1 | 30 | .0100 | 0.25 | .0242 | 0.61 | 110 | 361 | 0.69 | 1.02 |
