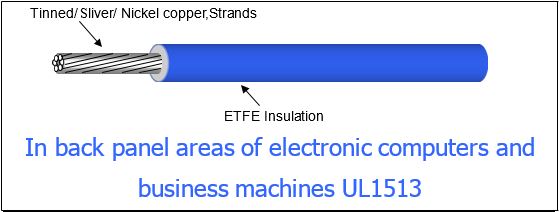

High Temperature Wire , ETFE Insulated Wire Style UL1513 Hook-up Wire
Internal wiring of Appliances or electronic equipment
Request a Quote for Style UL1513 Hook-up Wire
- Conductor material of Tinned ,Nickel,Silver copper
- Rated temperature 105 ℃
- Rated voltage 150 V (Spark voltage 1500 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
| Inch | mm | Inch | mm | 1000-ft | Km | |||
| 20 | 1 | 20 | .0319 | 0.81 | .0421 | 1.07 | 10.73 | 35.2 |
| 20 | 7 | 29 | .0374 | 0.95 | .0476 | 1.21 | 11.19 | 36.7 |
| 20 | 19 | 33 | .0374 | 0.95 | .0476 | 1.21 | 11.19 | 36.7 |
| 22 | 1 | 22 | .0252 | 0.64 | .0358 | 0.91 | 17.20 | 56.4 |
| 22 | 7 | 30 | .0299 | 0.76 | .0402 | 1.02 | 18.11 | 59.4 |
| 22 | 19 | 35 | .0299 | 0.76 | .0402 | 1.02 | 18.11 | 59.4 |
| 24 | 1 | 24 | .0201 | 0.51 | .0303 | 0.77 | 27.23 | 89.3 |
| 24 | 7 | 32 | .0236 | 0.60 | .0339 | 0.86 | 28.72 | 94.2 |
| 24 | 19 | 36 | .0236 | 0.60 | .0339 | 0.86 | 28.72 | 94.2 |
| 26 | 7 | 34 | .0189 | 0.48 | .0295 | 0.75 | 45.73 | 150 |
| 28 | 1 | 28 | .0126 | 0.32 | .0228 | 0.58 | 69.21 | 227 |
| 28 | 7 | 36 | .0150 | 0.38 | .0256 | 0.65 | 72.87 | 239 |
| 30 | 1 | 30 | .0098 | 0.25 | .0205 | 0.52 | 110 | 361 |
