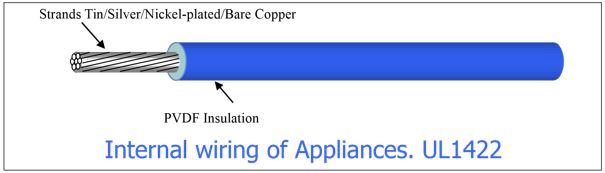

PVDF Insulated Wire Style UL1422 Hook-up Wire
Internal wiring of Appliances or electronic equipment.
Request a Quote for Style UL1422 Hook-up Wire
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km |
|||
| 20 | 1 | 20 | .0320 | 0.81 | .0478 | 1.21 | 10.7 | 35.2 | 4.13 | 6.14 |
| 20 | 7 | 29 | .0374 | 0.95 | .0531 | 1.35 | 11.2 | 36.7 | 4.11 | 6.12 |
| 20 | 19 | 33 | .0374 | 0.95 | .0531 | 1.35 | 11.2 | 36.7 | 4.38 | 6.51 |
| 22 | 1 | 22 | .0252 | 0.64 | .0409 | 1.04 | 17.2 | 56.4 | 2.76 | 4.11 |
| 22 | 7 | 30 | .0299 | 0.76 | .0457 | 1.16 | 18.1 | 59.4 | 3.18 | 4.74 |
| 22 | 19 | 35 | .0299 | 0.76 | .0457 | 1.16 | 18.1 | 59.4 | 2.97 | 4.41 |
| 24 | 1 | 24 | .0201 | 0.51 | .0358 | 0.91 | 27.3 | 89.3 | 1.93 | 2.87 |
| 24 | 7 | 32 | .0252 | 0.64 | .0409 | 1.04 | 28.7 | 94.2 | 2.15 | 3.20 |
| 24 | 19 | 36 | .0252 | 0.64 | .0409 | 1.04 | 28.7 | 94.2 | 2.27 | 3.38 |
| 26 | 1 | 26 | .0157 | 0.40 | .0315 | 0.80 | 43.5 | 143 | 1.34 | 2.00 |
| 26 | 7 | 34 | .0197 | 0.50 | .0354 | 0.90 | 45.8 | 150 | 1.53 | 2.28 |
| 26 | 19 | 38 | .0197 | 0.50 | .0354 | 0.90 | 45.8 | 150 | 1.58 | 2.36 |
| 28 | 1 | 28 | .0126 | 0.32 | .0283 | 0.72 | 69.3 | 227 | 0.99 | 1.48 |
| 30 | 1 | 30 | .0100 | 0.25 | .0257 | 0.65 | 110 | 361 | 0.75 | 1.11 |
