High Temperature Wire , FEP Insulated Wire Style UL1332 Hook-up Wire

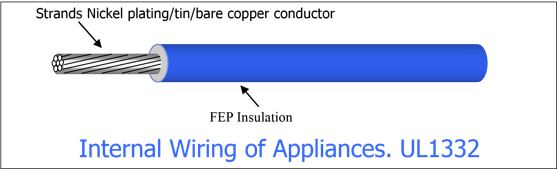

Internal wiring of appliances and electronic equipment, Suitable for immersion in gasoline; gasoline vapor; 80℃ in oil; and or 600 Volts peak for electronics use only.

Request a Quote for Style UL1332 Hook-up Wire
  • Conductor material of Tinned, Silvered or Nickel copper
  • “*”Conductor material used only silvered or Nickel copper per ASTM B3/33
  • Rated temperature 200 ℃
  • Rated voltage 300 V (Spark voltage 3000 V)
  • Flame resistance VW-1 or FT1
  • RoHS Compliant

Colors Available:  0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow

Striping:  Longitudinal and Parallel Stripes Available Per Request

Delivery:  All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items

Package:  Stocked in Spools, Barrel Pack Available Per Request

Wire Processing:  Cut, Strip, and Tinning Available

Gauge (AWG)
Number of
Strands
Gauge of
Strands (AWG)
Nom. Dia. of
Stranded Conductor
Nom. Fin.
Wire Diam.
Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
10
19
23
.1209
3.07
.1484
3.77
1.08
3.55
39.51
58.63
12
19
25
.0906
2.30
.1181
3.00
1.72
5.64
23.41
34.82
*14
19
27
.0740
1.88
.1000
2.54
2.73
8.96
16.22
24.07
16
1
16
.0512
1.30
.0772
1.96
4.26
14.0
10.67
15.84
*16
19
29
.0591
1.50
.0850
2.16
4.45
14.6
11.09
16.46
*16
26
30
.0591
1.50
.0850
2.16
4.45
14.6
10.94
16.23
18
1
18
.0402
1.02
.0661
1.68
6.77
22.2
7.14
10.58
18
7
26
.0465
1.18
.0724
1.84
7.06
23.2
7.52
11.14
*18
19
31
.0465
1.18
.0724
1.84
7.06
23.2
7.43
11.03
20
1
20
.0320
0.813
.0580
1.47
10.7
35.2
5.00
7.41
*20
7
29
.0374
0.95
.0634
1.61
11.2
36.7
5.33
7.91
*20
19
33
.0374
0.95
.0634
1.61
11.2
36.7
5.33
7.91
22
1
22
.0252
0.64
.0512
1.30
17.2
56.4
3.52
5.22
*22
7
30
.0299
0.76
.0559
1.42
18.1
59.4
4.07
6.02
*22
19
35
.0299
0.76
.0559
1.42
18.1
59.4
3.81
5.63
24
1
24
.0201
0.51
.0461
1.17
27.3
89.3
2.59
3.85
*24
7
32
.0240
0.61
.0500
1.27
28.7
94.2
2.85
4.23
*24
19
36
.0240
0.61
.0500
1.27
28.7
94.2
2.85
4.23
*26
7
34
.0197
0.50
.0457
1.16
45.8
150
2.19
3.25
*26
19
38
.0197
0.50
.0457
1.16
45.8
150
2.24
3.33
*28
1
28
.0126
0.32
.0386
0.98
69.3
227
1.53
2.28
*30
1
30
.0100
0.254
.0360
0.91
110
361
1.26
1.85
