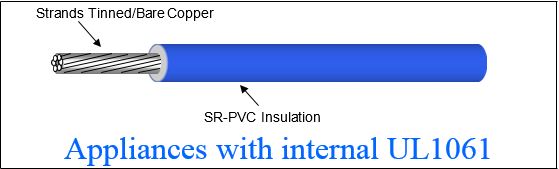

Electronic Hook Up Wire , PVC Insulated Wire Style UL1061 Hook-up Wire
Internal wiring in Electric Bookkeeping, Accounting, Time-Recording Machines, or Electronic Equipment if with a chassis or protected from mechanical injury.
Request a Quote for Style UL1061 Hook-up Wire
- Conductor material of tinned or bare copper
- Rated temperature 80°C
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 –Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request Wire
Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 16 | 7 | 25 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.51 | 14.10 |
| 16 | 19 | 29 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.51 | 14.10 |
| 16 | 26 | 30 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.35 | 13.87 |
| 18 | 1 | 18 | .0402 | 1.02 | .0598 | 1.52 | 6.77 | 22.2 | 5.95 | 8.82 |
| 18 | 7 | 26 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.19 | 9.17 |
| 18 | 16 | 30 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.04 | 8.94 |
| 18 | 19 | 31 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.10 | 9.06 |
| 20 | 1 | 20 | .0320 | 0.813 | .0517 | 1.31 | 10.7 | 35.2 | 3.98 | 5.90 |
| 20 | 7 | 29 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.16 | 6.16 |
| 20 | 10 | 30 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.16 | 6.16 |
| 20 | 19 | 33 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.20 | 6.23 |
| 22 | 1 | 22 | .0252 | 0.64 | .0449 | 1.14 | 17.2 | 56.4 | 2.66 | 3.92 |
| 22 | 7 | 30 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 3.08 | 4.54 |
| 22 | 19 | 35 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 2.83 | 4.19 |
| 24 | 1 | 24 | .0201 | 0.51 | .0398 | 1.01 | 27.3 | 89.3 | 1.84 | 2.71 |
| 24 | 7 | 32 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.02 | 2.97 |
| 24 | 11 | 34 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.02 | 2.98 |
| 26 | 7 | 34 | .0197 | 0.50 | .0394 | 1.00 | 45.8 | 150 | 1.44 | 2.13 |
| 28 | 7 | 36 | .0154 | 0.39 | .0350 | 0.89 | 72.8 | 239 | 1.04 | 1.54 |
| 30 | 1 | 30 | .0100 | 0.254 | .0297 | 0.75 | 110 | 361 | 0.71 | 1.04 |
