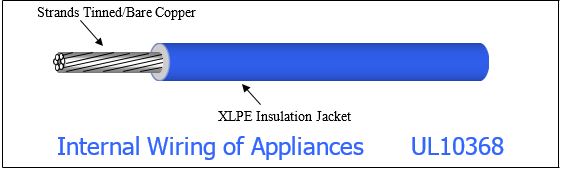

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL10368/3385/3386 Hook-up Wire
Internal wiring of electronic equipment.
Request a Quote for Style UL10368/3385/3386 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Operating temperature -20℃~105 ℃
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 or FT2
- RoHS Compliant
- UL3385 Rated Voltage 600 V (Spark voltage 6000 V)
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
10 | 105 | 30 | .1181 | 3.00 | .1378 | 3.50 | 1.08 | 3.55 | 34.76 | 51.61 |
12 | 65 | 30 | .0933 | 2.37 | .1130 | 2.87 | 1.72 | 5.64 | 21.98 | 32.65 |
14 | 41 | 30 | .0740 | 1.88 | .0937 | 2.38 | 2.73 | 8.96 | 14.25 | 21.15 |
16 | 7 | 25 | .0602 | 1.53 | .0799 | 2.03 | 4.45 | 14.6 | 9.72 | 14.42 |
16 | 26 | 30 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.35 | 13.87 |
18 | 1 | 18 | .0402 | 1.02 | .0598 | 1.52 | 6.77 | 22.2 | 5.94 | 8.82 |
18 | 7 | 26 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.19 | 9.17 |
18 | 16 | 30 | .0465 | 1.18 | .0661 | 1.68 | 6.77 | 22.2 | 6.03 | 8.94 |
20 | 1 | 20 | .0320 | 0.813 | .0517 | 1.31 | 10.7 | 35.2 | 3.98 | 5.90 |
20 | 10 | 30 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 3.98 | 6.16 |
20 | 21 | 33 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.17 | 6.19 |
22 | 17 | 34 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 2.85 | 4.24 |
22 | 7 | 30 | .0311 | 0.79 | .0508 | 1.29 | 18.1 | 59.4 | 3.07 | 4.54 |
24 | 7 | 32 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.01 | 2.97 |
24 | 11 | 34 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.01 | 2.98 |
26 | 7 | 34 | .0197 | 0.50 | .0394 | 1.00 | 45.8 | 150 | 1.43 | 2.13 |
