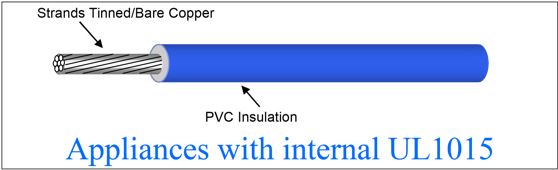

Electronic Hook Up Wire , PVC Insulated Wire Style UL1015 Hook-up Wire/ MTW/ CSA TEW

Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80C or 105C Whichever is applicable, The most popular hookup wire for Electric.

Request a Quote for Style UL1015 Hook-up Wire/ MTW/ CSA TEW
  • Conductor material of tinned or bare copper
  • Operating temperature -45°C~105°C
  • Rated Voltage 600 V (Spark voltage 6000 V)
  • Flame resistance VW-1 and FT1
  • RoHS Compliant

Colors Available: Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green,6-Blue, 7-Violet, 8-Grey, 9-White, 5/4– Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands		Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor
Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
Inchmm
Inchmm1000-ft
KmLBS./ 1000 ft.Kg/Km
1
259
25
.3295
8.37
.4870
12.37
0.13
0.4268
314.46
466.70
2
259
26
.2941
7.47
.4138
10.51
0.1641
0.5384
241.69
358.70
4
133
25
.2283
5.80
.3480
8.84
0.2608
0.8559
154.66
229.54
6
266
30
.2000
5.08
.3197
8.12
0.4148
1.361
123.52
183.33
8
168
30
.1496
3.80
.2402
6.10
0.6795
2.23
69.31
102.85
10
105
30
.1181
3.00
.1811
4.60
1.08
3.55
41.71
61.89
10
19
23
.1209
3.07
.1839
4.67
1.08
3.55
43.30
64.24
12
65
30
.0933
2.37
.1563
3.97
1.72
5.64
27.85
41.33
12
19
25
.0992
2.52
.1622
4.12
1.72
5.64
30.88
45.82
14
41
30
.0740
1.88
.1370
3.48
2.73
8.96
19.25
28.58
14
19
27
.0740
1.88
.1370
3.48
2.73
8.96
19.32
28.67
16
7
25
.0602
1.53
.1232
3.10
4.45
14.6
14.13
20.97
16
26
30
.0591
1.50
.1220
3.10
4.45
14.6
13.71
20.34
18
1
18
.0402
1.02
.1031
2.62
6.77
22.2
9.48
14.07
18
7
26
.0465
1.18
.1094
2.78
7.06
23.2
9.99
14.83
18
16
30
.0465
1.18
.1094
2.78
6.77
22.2
9.84
14.60
20
1
20
.0320
0.813
.0950
2.41
10.7
35.2
7.16
10.63
20
10
30
.0374
0.95
.1004
2.55
11.2
36.7
7.58
11.24
20
21
33
.0374
0.95
.1004
2.55
11.2
36.7
7.61
11.27
22
17
34
.0299
0.76
.0929
2.36
18.1
59.4
5.95
8.84
22
7
30
.0311
0.79
.0941
2.36
18.1
59.4
6.21
9.21
24
7
32
.0240
0.61
.0870
2.21
28.7
94.2
4.84
7.18
24
11
34
.0240
0.61
.0870
2.21
28.7
94.2
4.84
7.20
26
7
34
.0197
0.50
.0827
2.10
45.8
150
4.09
6.07
