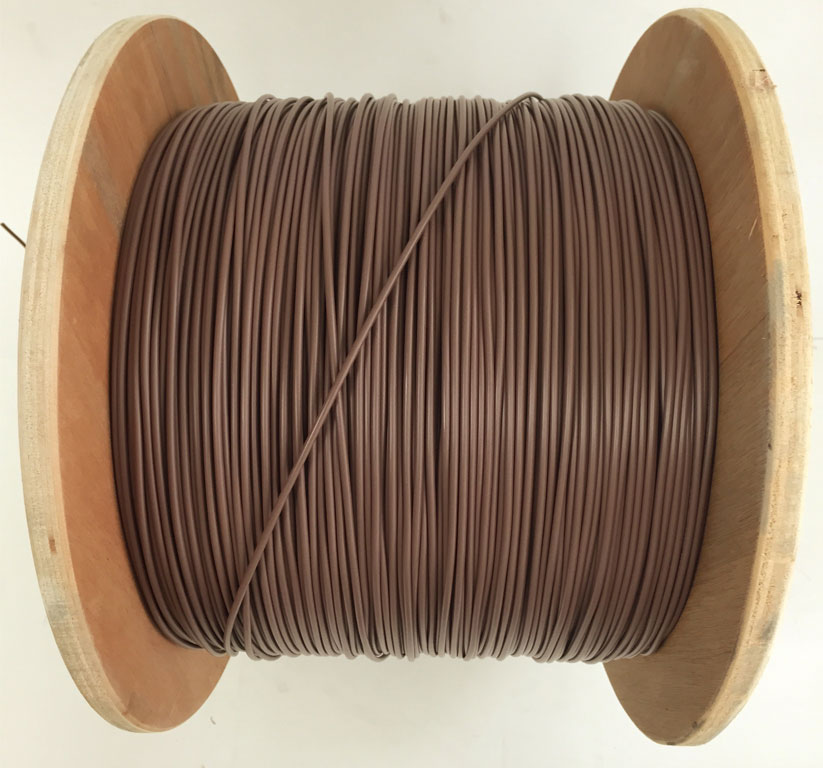

Electronic Hook Up Wire , PVC Insulated Wire Style UL1015 Hook-up Wire/CSA 5851- 01
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80C or 105C Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for Style UL1015 Hook-up Wire/CSA 5851- 01
- Conductor material of tinned or bare copper
- Operating temperature -10 ℃ ~ 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
- Meets MIL-W-16878/1B, 2C
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
1 | 259 | 25 | 0.3295 | 8.37 | 0.487 | 12.37 | 0.13 | 0.4268 | 314.46 | 466.7 |
2 | 259 | 26 | 0.2941 | 7.47 | 0.4138 | 10.51 | 0.1641 | 0.5384 | 241.69 | 358.7 |
4 | 133 | 25 | 0.2283 | 5.8 | 0.348 | 8.84 | 0.2608 | 0.8559 | 154.66 | 229.54 |
6 | 266 | 30 | 0.2 | 5.08 | 0.3197 | 8.12 | 0.4148 | 1.361 | 123.52 | 183.33 |
8 | 168 | 30 | 0.1496 | 3.8 | 0.2402 | 6.1 | 0.6795 | 2.23 | 69.31 | 102.85 |
10 | 105 | 30 | 0.1181 | 3 | 0.1811 | 4.6 | 1.08 | 3.55 | 41.71 | 61.89 |
10 | 19 | 23 | 0.1209 | 3.07 | 0.1839 | 4.67 | 1.08 | 3.55 | 43.3 | 64.24 |
12 | 65 | 30 | 0.0933 | 2.37 | 0.1563 | 3.97 | 1.72 | 5.64 | 27.85 | 41.33 |
12 | 19 | 25 | 0.0992 | 2.52 | 0.1622 | 4.12 | 1.72 | 5.64 | 30.88 | 45.82 |
14 | 41 | 30 | 0.074 | 1.88 | 0.137 | 3.48 | 2.73 | 8.96 | 19.25 | 28.58 |
14 | 19 | 27 | 0.074 | 1.88 | 0.137 | 3.48 | 2.73 | 8.96 | 19.32 | 28.67 |
16 | 7 | 25 | 0.0602 | 1.53 | 0.1232 | 3.1 | 4.45 | 14.6 | 14.13 | 20.97 |
16 | 26 | 30 | 0.0591 | 1.5 | 0.122 | 3.1 | 4.45 | 14.6 | 13.71 | 20.34 |
18 | 1 | 18 | 0.0402 | 1.02 | 0.1031 | 2.62 | 6.77 | 22.2 | 9.48 | 14.07 |
18 | 7 | 26 | 0.0465 | 1.18 | 0.1094 | 2.78 | 7.06 | 23.2 | 9.99 | 14.83 |
18 | 16 | 30 | 0.0465 | 1.18 | 0.1094 | 2.78 | 6.77 | 22.2 | 9.84 | 14.6 |
20 | 1 | 20 | 0.032 | 0.813 | 0.095 | 2.41 | 10.7 | 35.2 | 7.16 | 10.63 |
20 | 10 | 30 | 0.0374 | 0.95 | 0.1004 | 2.55 | 11.2 | 36.7 | 7.58 | 11.24 |
20 | 21 | 33 | 0.0374 | 0.95 | 0.1004 | 2.55 | 11.2 | 36.7 | 7.61 | 11.27 |
22 | 17 | 34 | 0.0299 | 0.76 | 0.0929 | 2.36 | 18.1 | 59.4 | 5.95 | 8.84 |
22 | 7 | 30 | 0.0311 | 0.79 | 0.0941 | 2.36 | 18.1 | 59.4 | 6.21 | 9.21 |
24 | 7 | 32 | 0.024 | 0.61 | 0.087 | 2.21 | 28.7 | 94.2 | 4.84 | 7.18 |
24 | 11 | 34 | 0.024 | 0.61 | 0.087 | 2.21 | 28.7 | 94.2 | 4.84 | 7.2 |
26 | 7 | 34 | 0.0197 | 0.5 | 0.0827 | 2.1 | 45.8 | 150 | 4.09 | 6.07 |
