Mil-Spec Wire MIL-W-16878/6 Type ET (M16878/6)
M16878/6 type ET has excellent thermal aging, solder damage, flame, and moisture resistance. PTFE resists solvents, grease, ozone and most chemicals.
More option: M16878/4 Type E, M16878/5 Type EE
Request a Quote for MIL-W-16878/6 Type ET (M16878/6)
MIL-W-16878/6 (M16878/6) TYPE ET
- Conductor: Silver Plated Copper, Stranded or Solid
- Insulation: Extruded PTFE Insulation
- Rated temperature: 200 ℃
- Rated Voltage:250V
- Passes UL VW-1 Flame Test
- RoHS Compliant

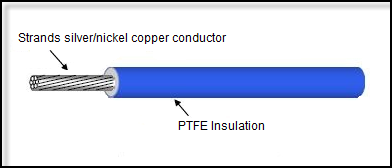

Wire Structure Description:
Conductor: Silver plated copper
Insulation: Extruded PTFE Insulation
Military Number | Wire Size (AWG) | Stranding | Conductor (Copper) Coating | Insulated Thickness Nominal | Finished Wire Diameter | ||
Inch | mm | Inch | mm | ||||
M16878/6BAB* | 32 | 7/40 | Silver | .0060 | 0.15 | .0210 | 0.533 |
M16878/6BBA* | 30 | Solid | Silver | .0060 | 0.15 | .0220 | 0.559 |
M16878/6BBB* | 30 | 7/38 | Silver | .0060 | 0.15 | .0240 | 0.610 |
M16878/6BCA* | 28 | Solid | Silver | .0060 | 0.15 | .0250 | 0.635 |
M16878/6BCB* | 28 | 7/36 | Silver | .0060 | 0.15 | .0270 | 0.686 |
M16878/6BDA* | 26 | Solid | Silver | .0060 | 0.15 | .0280 | 0.711 |
M16878/6BDE* | 26 | 19/38 | Silver | .0060 | 0.15 | .0320 | 0.813 |
M16878/6BDB* | 26 | 7/34 | Silver | .0060 | 0.15 | .0310 | 0.787 |
M16878/6BEB* | 24 | Solid | Silver | .0060 | 0.15 | .0320 | 0.813 |
M16878/6BEB* | 24 | 7/32 | Silver | .0060 | 0.15 | .0360 | 0.914 |
M16878/6BEE* | 24 | 19/36 | Silver | .0060 | 0.15 | .0370 | 0.940 |
M16878/6BFB* | 22 | 7/30 | Silver | .0060 | 0.15 | .0420 | 1.067 |
