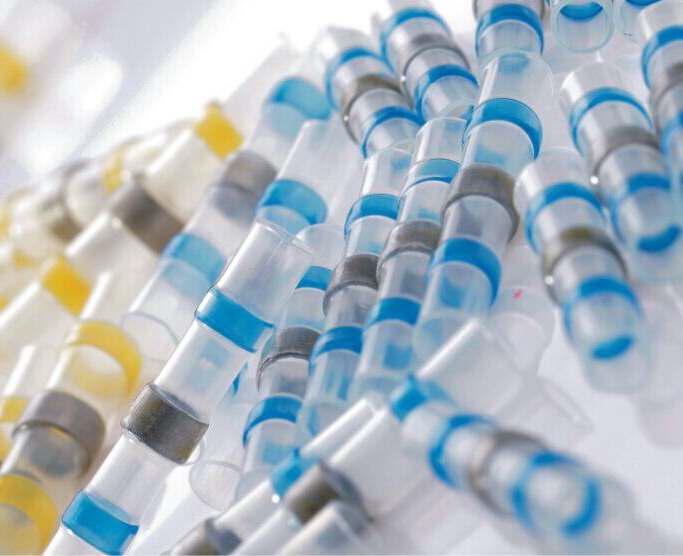

Heat Shrink Molded Product and Sleeves FT-SSWS Solder sleeve wire splices
It is the easiest way to get one step soldered, sealed and insulated butt connection. The special colored hot-melt glue on both ends of heat shrinkable tube, it is very convenience to identify and use the exact wire dimensions.
Request a Quote for FT-SSWS Solder sleeve wire splices
- Shrink ratio: 2:1
- Working temperature: -55℃~+125℃
- Min. shrink temperature: 60℃
- Solder min. fully melt : 138℃
- Meet RoHS
- Excellent waterproof and conductivity property
- Easy control soldering process
- Transparent sleeve provides precise inspection
Technical Data
| Property | Test Method | Stantard |
| Dielectric voltage withstand | RT-1 404 | 2.0 kV |
| Voltage rating | RT-1404 | 600 V |
| Voltage drop | RT-1404 | ≤2.0 mV |
| Copper corrosion | ASTM D 2671 | Non-corrosive |
| Product Dimensions(mm) | Wire Dimensions(mm) | Cable Size | Standard color | |||
| A(min.) | L(max.) | B(min.) | B and C(max.) | C(m in.) | A.W.G.(mm2) | |
| 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24(0.25-0.34) | White |
| 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18(0.5-1.0) | Red |
| 4.5 | 40 | 2.3 | 4.5 | 2.0 | 16-14(1.5-2.5) | Blue |
| 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10(4.0-6.0) | Yellow |
