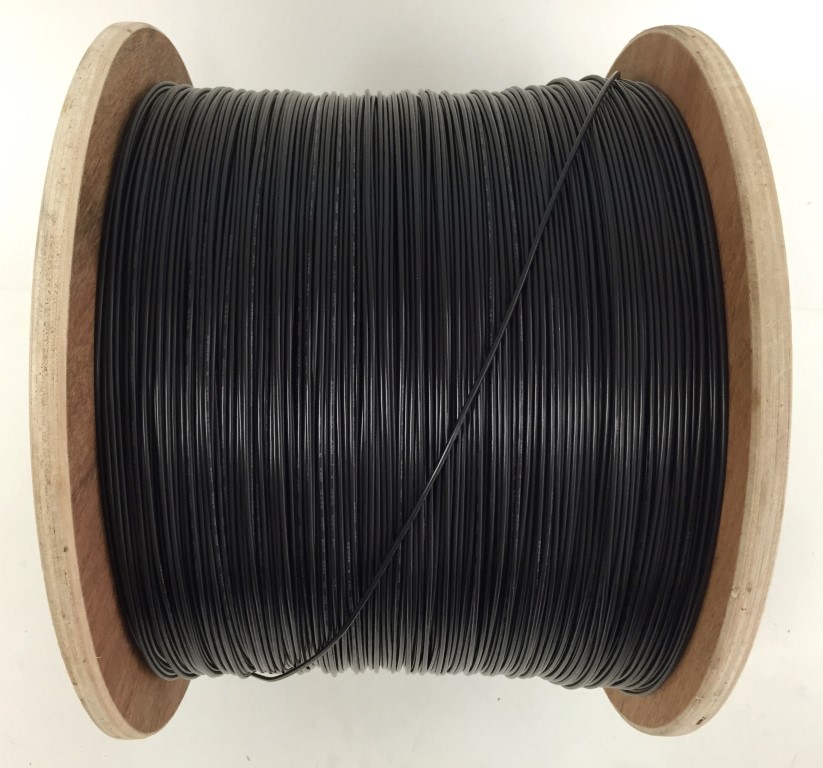

Electronic Hook Up Wire , PVC Insulated Wire UL1007/1569 Hook-up Wire / CSA TR-64
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80C or 105C Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for UL1007/1569 Hook-up Wire / CSA TR-64
- Conductor material of tinned or bare copper
- Operating temperature -10°C to 105°C
- Rated Voltage 300 V (Spark voltage 3000 V)
- RoHS Compliant
- Meets MIL-W-16878/1B
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 105 | 30 | .1181 | 3.00 | .1496 | 3.80 | 1.08 | 3.55 | 36.47 | 54.14 |
| 10 | 65 | 30 | .0933 | 2.37 | .1248 | 3.17 | 1.72 | 5.64 | 23.41 | 34.74 |
| 12 | 19 | 25 | .0992 | 2.52 | .1307 | 3.32 | 1.72 | 5.64 | 26.26 | 38.95 |
| 14 | 19 | 27 | .0740 | 1.88 | .1055 | 2.68 | 2.73 | 8.96 | 15.50 | 22.99 |
| 14 | 41 | 30 | .0740 | 1.88 | .1055 | 2.68 | 2.73 | 8.96 | 15.43 | 22.90 |
| 16 | 7 | 25 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.74 | 15.93 |
| 16 | 26 | 30 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.35 | 15.36 |
| 16 | 19 | 29 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.50 | 15.59 |
| 18 | 1 | 18 | .0402 | 1.02 | .0717 | 1.82 | 6.77 | 22.2 | 6.72 | 9.97 |
| 18 | 7 | 26 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 7.03 | 10.44 |
| 18 | 16 | 30 | .0465 | 1.18 | .0780 | 1.98 | 6.77 | 22.2 | 6.88 | 10.21 |
| 18 | 19 | 31 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.97 | 10.33 |
| 20 | 1 | 20 | .0320 | 0.813 | .0635 | 1.61 | 10.7 | 35.2 | 4.67 | 6.91 |
| 20 | 10 | 30 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.91 | 7.27 |
| 20 | 19 | 33 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.95 | 7.34 |
| 20 | 21 | 33 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.93 | 7.30 |
| 22 | 7 | 30 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.74 | 5.54 |
| 22 | 17 | 34 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.52 | 5.22 |
| 24 | 11 | 34 | .0240 | 0.61 | .0555 | 1.41 | 28.7 | 94.2 | 2.61 | 3.85 |
| 26 | 7 | 34 | .0197 | 0.50 | .0512 | 1.30 | 45.8 | 150 | 1.97 | 2.93 |
| 28 | 7 | 36 | .0154 | 0.39 | .0469 | 1.19 | 72.8 | 239 | 1.53 | 2.26 |
| 30 | 1 | 30 | .0100 | 0.254 | .0415 | 1.05 | 110 | 361 | 1.13 | 1.66 |
