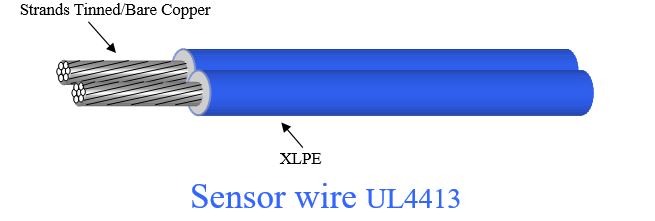

High Temperature Wire Style UL4413 Hook-up Wire
Internal wiring of electronic equipments where exposed to temperature not exceeding 150℃
Request a Quote for Style UL4413 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 150 ℃
- Rated Voltage 300 V
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Conductor Size (No./mm) +0.005mm | Dia. of Conductor | Nom. Fin. Wire Diam. | Conductor resistance 20℃（Ω/Km) |
||
| Inch | MM | Inch | MM | |||
| 16 | 26/0.254 | 0.0590 | 1.50 | 0.0889 | 2.26 | 14.60 |
| 0.1811 | 4.60 | |||||
| 18 | 16/0.254 | 0.046 | 1.17 | 0.0759 | 1.93 | 23.20 |
| 0.1555 | 3.95 | |||||
| 20 | 21/0.18 | 0.0374 | 0.95 | 0.0673 | 1.71 | 36.70 |
| 0.1377 | 3.50 | |||||
| 20 | 1/0.813 | 0.0374 | 0.95 | 0.0618 | 1.57 | 36.70 |
| 0.1279 | 3.25 | |||||
| 22 | 17/0.16 | 0.0299 | 0.76 | 0.0598 | 1.52 | 59.40 |
| 0.124 | 3.15 | |||||
| 22 | 1/0.65 | 0.0255 | 0.65 | 0.0555 | 1.41 | 59.40 |
| 0.1141 | 2.90 | |||||
| 24 | 11/0.16 | 0.0240 | 0.61 | 0.0539 | 1.37 | 94.20 |
| 0.1122 | 2.85 | |||||
| 26 | 7/0.16 | 0.0188 | 0.48 | 0.0488 | 1.24 | 150.00 |
| 0.1023 | 2.60 | |||||
| 28 | 7/0.127 | 0.0149 | 0.38 | 0.0448 | 1.14 | 239.00 |
| 0.0944 | 2.40 | |||||
| 30 | 7/0.10 | 0.0118 | 0.30 | 0.0629 | 1.06 | 381.00 |
| 0.0866 | 2.20 | |||||
