High Temperature Wire , Silicone Insulated Wire Style UL3641 Hook-up Wire

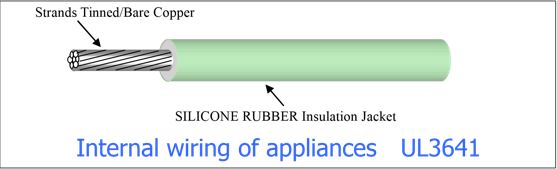

Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 180 ℃.
Request a Quote for Style UL3641 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 180 ℃
- Rated Voltage 3300V (Spark voltage 10000V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
Inch | mm | Inch | mm | 1000-ft | Km | |||
2/0 | 1330 | 30 | .4827 | 12.26 | 0.6244 | 15.86 | 0.08 | 0.28 |
1/0 | 1045 | 30 | .4283 | 10.88 | 0.5709 | 14.50 | 0.11 | 0.35 |
1 | 836 | 30 | .3827 | 9.72 | 0.5244 | 13.32 | 0.13 | 0.44 |
2 | 665 | 30 | .3378 | 8.58 | 0.4803 | 12.20 | 0.17 | 0.56 |
4 | 420 | 30 | .2685 | 6.82 | 0.4102 | 10.42 | 0.27 | 0.88 |
6 | 266 | 30 | .2130 | 5.41 | 0.3543 | 9.00 | 0.43 | 1.40 |
8 | 168 | 30 | .1496 | 3.80 | 0.2913 | 7.40 | 0.68 | 2.23 |
10 | 105 | 30 | .1181 | 3.00 | 0.2598 | 6.60 | 1.08 | 3.55 |
12 | 65 | 30 | .0929 | 2.36 | 0.2346 | 5.96 | 1.72 | 5.64 |
14 | 41 | 30 | .0740 | 1.88 | 0.2165 | 5.50 | 2.73 | 8.96 |
16 | 26 | 30 | .0591 | 1.50 | 0.2008 | 5.10 | 4.45 | 14.60 |
