Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3436 Hook-up Wire

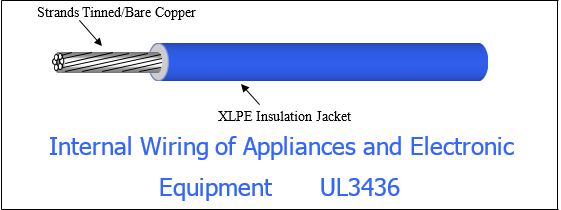

Internal wiring of electronic equipment.
Request a Quote for Style UL3436 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 125 ℃
- Rated Voltage 600 V (Spark voltage 4000 V~12500V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .6772 | 17.20 | 0.05248 | 0.1722 | 714.30 | 1062.74 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .6185 | 15.71 | 0.06688 | 0.2194 | 573.21 | 852.83 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .5748 | 14.60 | 0.0814 | 0.2670 | 477.77 | 710.83 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .5232 | 13.29 | 0.1026 | 0.3367 | 377.53 | 561.68 |
| 1 | 259 | 25 | .3295 | 8.37 | .4870 | 12.37 | 0.1300 | 0.4268 | 314.46 | 466.70 |
| 2 | 259 | 26 | .2941 | 7.47 | .4138 | 10.51 | 0.1641 | 0.5384 | 241.68 | 358.70 |
| 4 | 133 | 25 | .2386 | 6.06 | .3291 | 8.36 | 0.2608 | 0.8559 | 156.47 | 232.80 |
| 6 | 266 | 30 | .1882 | 4.78 | .2787 | 7.08 | 0.4148 | 1.361 | 102.65 | 152.72 |
| 8 | 168 | 30 | .1496 | 3.80 | .2402 | 6.10 | 0.6795 | 2.23 | 69.30 | 102.85 |
| 10 | 105 | 30 | .1181 | 3.00 | .1795 | 4.56 | 1.08 | 3.55 | 41.41 | 61.47 |
| 12 | 65 | 30 | .0933 | 2.37 | .1547 | 3.93 | 1.72 | 5.64 | 27.60 | 40.97 |
| 14 | 41 | 30 | .0740 | 1.88 | .1354 | 3.44 | 2.73 | 8.96 | 19.05 | 28.26 |
| 16 | 26 | 30 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.52 | 20.06 |
| 18 | 1 | 18 | .0402 | 1.02 | .1016 | 2.58 | 6.77 | 22.2 | 9.32 | 13.83 |
| 18 | 16 | 30 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.66 | 14.35 |
| 20 | 1 | 20 | .0320 | 0.813 | .0934 | 2.37 | 10.7 | 35.2 | 7.00 | 10.41 |
| 20 | 21 | 33 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.42 | 11.04 |
| 22 | 17 | 34 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.81 | 8.62 |
| 24 | 7 | 32 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.71 | 6.98 |
| 24 | 11 | 34 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.71 | 6.99 |
| 26 | 7 | 34 | .0197 | 0.50 | .0811 | 2.06 | 45.8 | 150 | 3.95 | 5.87 |
| 28 | 1 | 28 | .0126 | 0.32 | .0740 | 1.88 | 69.3 | 227 | 3.15 | 4.68 |
| 28 | 7 | 36 | .0154 | 0.39 | .0768 | 1.95 | 72.8 | 239 | 3.37 | 5.01 |
| 30 | 1 | 30 | .0100 | 0.254 | .0714 | 1.81 | 110 | 361 | 2.81 | 4.18 |
