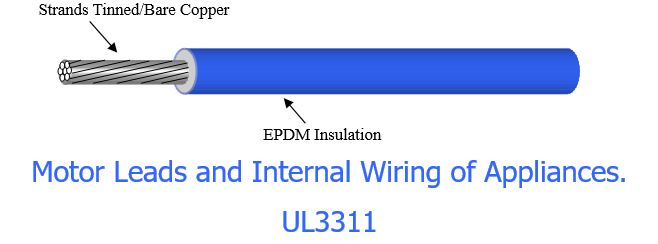

Electronic Hook Up Wire Style UL3311 Hook-up Wire
Internal wiring of Appliances or electronic equipment where exposed to temperature not exceeding 90℃
Request a Quote for Style UL3311 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 90 ℃
- Rated Voltage 600V
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Conductor Size (No./mm) +0.005mm | Dia. of Conductor | Nom. Fin. Wire Diam. | Conductor resistance 20℃ (Ω/Km) |
||
| Inch | MM | Inch | MM | |||
| 2/0 | 19/70/0.254 | 0.4848 | 12.24 | 0.6417 | 16.30 | 0.277 |
| 1/0 | 19/55/0.254 | 0.4287 | 10.89 | 0.5885 | 14.95 | 0.349 |
| 1 | 19/44/0.254 | 0.3834 | 9.74 | 0.5433 | 13.80 | 0.44 |
| 2 | 7/95/0.254 | 0.3370 | 8.56 | 0.4566 | 11.60 | 0.555 |
| 4 | 7/60/0.254 | 0.2681 | 6.81 | 0.3877 | 9.85 | 0.882 |
| 6 | 7/38/0.254 | 0.2129 | 5.41 | 0.3326 | 8.45 | 1.403 |
| 8 | 168/0.254 | 0.1496 | 3.80 | 0.2696 | 6.85 | 2.23 |
| 10 | 105/0.254 | 0.1181 | 3.00 | 0.2381 | 6.05 | 3.54 |
| 12 | 65/0.254 | 0.0929 | 2.36 | 0.2125 | 5.40 | 5.64 |
| 14 | 41/0.254 | 0.0740 | 1.88 | 0.1937 | 4.92 | 8.96 |
| 16 | 26/0.254 | 0.0590 | 1.50 | 0.1791 | 4.55 | 14.6 |
| 18 | 16/0.254 | 0.0460 | 1.17 | 0.1653 | 4.20 | 23.2 |
| 20 | 21/0.18 | 0.0374 | 0.95 | 0.1574 | 4.00 | 36.7 |
| 22 | 17/0.16 | 0.0292 | 0.76 | 0.1496 | 3.80 | 59.4 |
| 24 | 11/0.16 | 0.0240 | 0.61 | 0.1437 | 3.65 | 94.2 |
| 26 | 7/0.16 | 0.0189 | 0.48 | 0.1388 | 3.52 | 150 |
| 28 | 7/0.127 | 0.0149 | 0.38 | 0.1346 | 3.42 | 239 |
| 30 | 7/0.10 | 0.0118 | 0.30 | 0.1318 | 3.35 | 381 |
