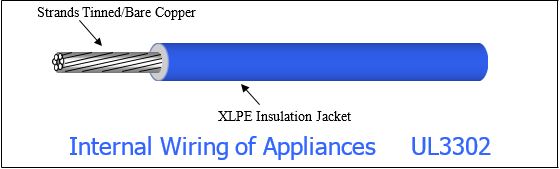

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3302 Hook-up Wire
Internal wiring of electronic equipment.
Request a Quote for Style UL3302 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 30 V (Spark voltage 1500 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
16 | 7 | 25 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.48 | 14.10 |
16 | 19 | 29 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.48 | 14.10 |
16 | 26 | 30 | .0591 | 1.50 | .0787 | 2.00 | 4.45 | 14.6 | 9.32 | 13.87 |
18 | 1 | 18 | .0402 | 1.02 | .0598 | 1.52 | 6.77 | 22.2 | 5.93 | 8.82 |
18 | 16 | 30 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.01 | 8.94 |
18 | 7 | 26 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.16 | 9.17 |
18 | 19 | 31 | .0465 | 1.18 | .0661 | 1.68 | 7.06 | 23.2 | 6.09 | 9.06 |
20 | 1 | 20 | .0320 | 0.813 | .0517 | 1.31 | 10.7 | 35.2 | 3.96 | 5.90 |
20 | 10 | 30 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.14 | 6.16 |
20 | 19 | 33 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.19 | 6.23 |
20 | 21 | 33 | .0374 | 0.95 | .0571 | 1.45 | 11.2 | 36.7 | 4.16 | 6.19 |
22 | 7 | 30 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 2.85 | 4.24 |
22 | 17 | 34 | .0299 | 0.76 | .0496 | 1.26 | 18.1 | 59.4 | 2.85 | 4.24 |
24 | 11 | 34 | .0240 | 0.61 | .0437 | 1.11 | 28.7 | 94.2 | 2.00 | 2.98 |
26 | 7 | 34 | .0197 | 0.50 | .0394 | 1.00 | 45.8 | 150 | 1.43 | 2.13 |
28 | 7 | 36 | .0154 | 0.39 | .0350 | 0.89 | 72.8 | 239 | 1.03 | 1.54 |
30 | 1 | 30 | .0100 | 0.254 | .0297 | 0.75 | 110 | 361 | 0.70 | 1.04 |
