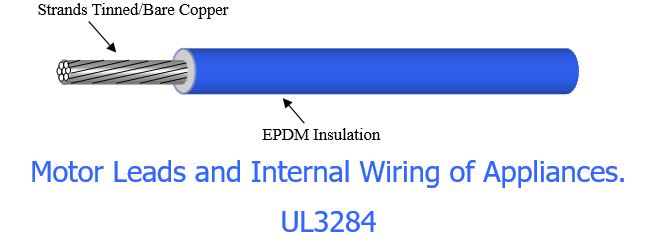

Electronic Hook Up Wire Style UL3284 Hook-up Wire
Internal wiring of Appliances or electronic equipment where exposed to temperature not exceeding 125℃
Request a Quote for Style UL3284 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 125 ℃
- Rated Voltage 600V/li>
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Conductor Size (No./mm) +0.005mm | Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Conductor resistance 20℃ (Ω/Km) |
||
| Inch | MM | Inch | MM | |||
| 8 | 168/0.254 | 0.1496 | 3.80 | 0.2692 | 6.84 | 2.23 |
| 10 | 105/0.254 | 0.1188 | 3.00 | 0.2086 | 5.30 | 3.54 |
| 12 | 65/0.254 | 0.0929 | 2.36 | 0.1834 | 4.66 | 5.64 |
| 14 | 41/0.254 | 0.0740 | 1.88 | 0.1645 | 4.18 | 8.96 |
| 16 | 26/0.254 | 0.0590 | 1.50 | 0.1496 | 3.80 | 14.60 |
| 18 | 16/2.054 | 0.0460 | 1.17 | 0.1370 | 3.48 | 23.20 |
| 20 | 21/0.18 | 0.0374 | 0.95 | 0.1279 | 3.25 | 36.70 |
| 22 | 17/0.16 | 0.0299 | 0.76 | 0.1204 | 3.06 | 59.40 |
| 24 | 11/0.16 | 0.0240 | 0.61 | 0.1145 | 2.91 | 94.20 |
| 26 | 7/0.16 | 0.0188 | 0.48 | 0.1094 | 2.78 | 150.00 |
