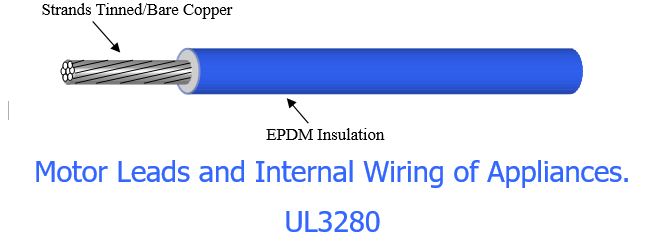

Electronic Hook Up Wire Style UL3280 Hook-up Wire
Internal wiring of Appliances or electronic equipments where exposed to temperature not exceeding 150℃
Request a Quote for Style UL3280 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 150 ℃
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Conductor Size (No./mm) +0.005mm | Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Conductor resistance 20℃ (Ω/Km) |
||
| Inch | MM | Inch | MM | |||
| 14 | 41/0.254 | 0.074 | 1.88 | 0.1338 | 3.4 | 8.96 |
| 16 | 26/0.254 | 0.059 | 1.5 | 0.12 | 3.05 | 14.6 |
| 18 | 16/0.254 | 0.046 | 1.17 | 0.1082 | 2.75 | 23.2 |
| 20 | 21/0.18 | 0.0374 | 0.95 | 0.0984 | 2.5 | 36.7 |
| 22 | 17/0.16 | 0.0299 | 0.76 | 0.0885 | 2.25 | 59.4 |
| 24 | 11/0.16 | 0.024 | 0.61 | 0.0826 | 2.1 | 94.2 |
| 26 | 7/0.16 | 0.0188 | 0.48 | 0.0787 | 2 | 150 |
