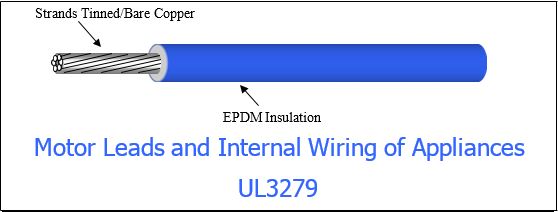

EPDM Insulated Wire Style UL3279 Hook-up Wire
Request a Quote for Style UL3279 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | MM | Inch | MM | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km |
|||
| 4/0 | 259 | 21 | .6008 | 15.26 | .7583 | 19.26 | 0.05248 | 0.1722 | 751.78 | 1118.49 |
| 3/0 | 259 | 22 | .5335 | 13.55 | .6909 | 17.55 | 0.06688 | 0.2194 | 604.98 | 900.09 |
| 2/0 | 259 | 23 | .4764 | 12.10 | .6339 | 16.10 | 0.0814 | 0.2670 | 492.71 | 733.05 |
| 1/0 | 259 | 24 | .4240 | 10.77 | .5815 | 14.77 | 0.1026 | 0.3367 | 400.39 | 595.70 |
| 1 | 259 | 25 | .3780 | 9.60 | .5354 | 13.60 | 0.1300 | 0.4268 | 326.60 | 485.91 |
| 2 | 259 | 26 | .3354 | 8.52 | .4551 | 11.56 | 0.1641 | 0.5384 | 248.08 | 369.10 |
| 4 | 133 | 25 | .2705 | 6.87 | .3902 | 9.91 | 0.2608 | 0.8559 | 170.32 | 253.39 |
| 6 | 266 | 30 | .2138 | 5.43 | .3335 | 8.47 | 0.4148 | 1.361 | 114.27 | 170.01 |
| 8 | 168 | 30 | .1496 | 3.80 | .2693 | 6.84 | 0.6795 | 2.23 | 76.56 | 113.90 |
| 10 | 105 | 30 | .1181 | 3.00 | .2087 | 5.30 | 1.08 | 3.55 | 46.97 | 69.89 |
| 12 | 65 | 30 | .0933 | 2.37 | .1839 | 4.67 | 1.72 | 5.64 | 32.47 | 48.31 |
| 14 | 41 | 30 | .0740 | 1.88 | .1646 | 4.18 | 2.73 | 8.96 | 23.37 | 34.77 |
| 16 | 26 | 30 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 17.42 | 25.92 |
| 18 | 1 | 18 | .0402 | 1.02 | .1307 | 3.32 | 6.77 | 22.2 | 12.68 | 18.87 |
| 18 | 16 | 30 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 13.21 | 19.66 |
| 20 | 1 | 20 | .0320 | 0.813 | .1226 | 3.11 | 10.7 | 35.2 | 10.14 | 15.09 |
| 20 | 21 | 33 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.72 | 15.95 |
| 22 | 17 | 34 | .0299 | 0.76 | .1205 | 3.06 | 18.1 | 59.4 | 8.88 | 13.21 |
| 24 | 7 | 32 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.61 | 11.32 |
| 24 | 11 | 34 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.62 | 11.33 |
| 26 | 7 | 34 | .0197 | 0.50 | .1102 | 2.80 | 45.8 | 150 | 6.74 | 10.02 |
