High Temperature Wire , Silicone Insulated Wire Style UL3239 High Voltage Wire

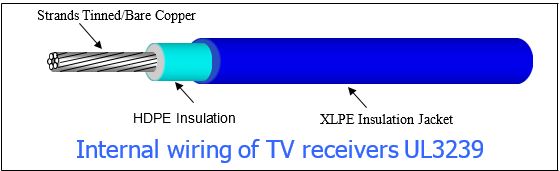

Internal wiring of electronic equipment or TV receivers.

Request a Quote for Style UL3239 High Voltage Wire
  • Conductor material of Tinned or Bare copper
  • Operating temperature -40°C ~150 °C
  • Rated Voltage 30 kV or less than 30kV
  • Flame resistance VW-1 or FT2
  • RoHS Compliant
  • Covered working voltage rating for 3 kV to 30 kV

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5 Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per R : equest
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)
Number of
Strands
Gauge of
Strands (AWG)		Nom. Dia. of
Stranded Conductor
Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
10
105
30
.1181
3.00
.2362
6.00
1.08
3.55
53.72
76.79
12
65
30
.0933
2.37
.2114
5.37
1.72
5.64
36.73
54.51
12
19
25
.0992
2.52
.2173
5.52
1.72
5.64
40.02
59.40
14
19
27
.0740
1.88
.1921
4.88
2.73
8.96
27.29
40.51
14
41
30
.0740
1.88
.1921
4.88
2.73
8.96
29.23
40.42
16
7
25
.0602
1.53
.1783
4.53
4.45
14.6
21.46
31.84
16
26
30
.0591
1.50
.1772
4.50
4.45
14.6
20.98
31.14
16
19
29
.0591
1.50
.1772
4.50
4.45
14.6
21.13
31.37
18
1
18
.0402
1.02
.1583
4.02
6.77
22.2
15.87
23.55
18
7
26
.0465
1.18
.1646
4.18
7.06
23.2
16.69
24.75
18
16
30
.0465
1.18
.1646
4.18
6.77
22.2
16.53
24.52
18
19
31
.0465
1.18
.1646
4.18
7.06
23.2
16.60
24.64
20
1
20
.0320
0.813
.1501
3.81
10.7
35.2
13.18
19.54
20
10
30
.0374
0.95
.1555
3.95
11.2
36.7
13.84
20.53
20
19
33
.0374
0.95
.1555
3.95
11.2
36.7
13.88
20.60
20
21
33
.0374
0.95
.1555
3.95
11.2
36.7
13.86
20.56
22
7
30
.0311
0.79
.1492
3.79
18.1
59.4
12.18
18.07
22
17
34
.0299
0.76
.1480
3.76
18.1
59.4
11.87
17.60
24
11
34
.0240
0.61
.1421
3.61
28.7
94.2
10.48
15.56
26
7
34
.0197
0.50
.1378
3.50
45.8
150
9.53
14.12

Insulated thickness of UL3239 working voltage rating

Rating of voltage
Wall of
Thickness
kVInchmm
3,4
.0217
0.55
5,6
.0335
0.85
10
.0394
1.00
20
.0453
1.15
25
.0512
1.30
