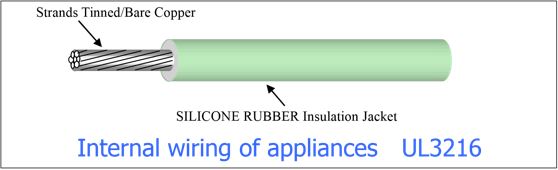

High Temperature Wire , Silicone Insulated Wire Style UL3216 High Temperature Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3216 High Temperature Wire
- Conductor material of Tinned, or bare copper
- Rated temperature 150 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 105 | 30 | .1181 | 3.00 | .2756 | 7.00 | 1.08 | 3.55 | 60.98 | 90.72 |
| 12 | 7 | 21 | .0933 | 2.37 | .2508 | 6.37 | 1.72 | 5.64 | 45.20 | 67.24 |
| 12 | 65 | 30 | .0933 | 2.37 | .2508 | 6.37 | 1.72 | 5.64 | 45.09 | 67.09 |
| 14 | 7 | 23 | .0740 | 1.88 | .2315 | 5.88 | 2.73 | 2.73 | 34.97 | 52.03 |
| 14 | 19 | 27 | .0740 | 1.88 | .2315 | 5.88 | 2.73 | 8.96 | 34.98 | 52.04 |
| 14 | 41 | 30 | .0740 | 1.88 | .2315 | 5.88 | 2.73 | 8.96 | 34.92 | 51.95 |
