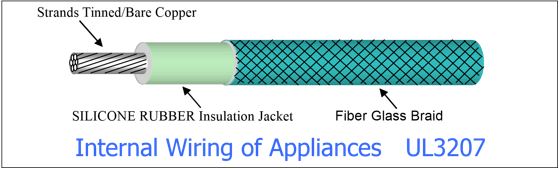

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3207 Hook-up Wire
Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 150 ℃.
Request a Quote for Style UL3207 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 150 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Packagec: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 18 | 1 | 18 | .0402 | 1.02 | .1780 | 4.52 | 6.77 | 22.2 | 18.91 | 28.13 |
| 18 | 7 | 26 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.83 | 29.50 |
| 18 | 16 | 30 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.67 | 29.27 |
| 18 | 19 | 31 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.75 | 29.39 |
| 18 | 41 | 34 | .0465 | 1.18 | .1843 | 4.68 | 7.06 | 23.2 | 19.76 | 29.39 |
