Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3195 Hook-up Wire
Internal wiring of electronic equipment.
Request a Quote for Style UL3195 Hook-up Wire

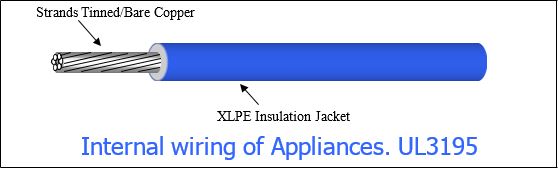

- Conductor material of Tinned or Bare copper
- Rated temperature 125℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 8 | 168 | 30 | .1496 | 3.8 | .2402 | 6.10 | 0.6795 | 2.23 | 69.13 | 102.85 |
