Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3182 Hook-up Wire

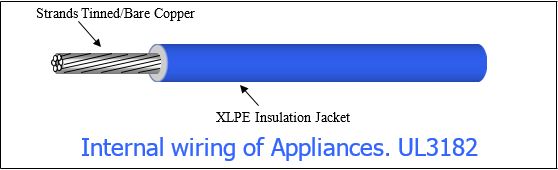

Internal wiring of electronic equipment.
Request a Quote for Style UL3182 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 125 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 9 | 88 | 29 | .1280 | 3.25 | .2224 | 5.65 | 0.8574 | 2.81 | 54.18 | 80.60 |
| 10 | 105 | 30 | .1181 | 3.00 | .2126 | 5.40 | 1.08 | 3.55 | 47.80 | 71.12 |
| 10 | 19 | 23 | .1209 | 3.07 | .2154 | 5.47 | 1.08 | 3.55 | 49.47 | 73.60 |
| 12 | 65 | 30 | .0933 | 2.37 | .1878 | 4.77 | 1.72 | 5.64 | 33.20 | 49.40 |
| 14 | 19 | 27 | .0740 | 1.88 | .1685 | 4.28 | 2.73 | 8.96 | 24.09 | 35.84 |
| 14 | 41 | 30 | .0740 | 1.88 | .1685 | 4.28 | 2.73 | 8.96 | 24.03 | 35.75 |
| 16 | 7 | 25 | .0602 | 1.53 | .1547 | 3.93 | 4.45 | 14.6 | 18.47 | 27.49 |
| 16 | 26 | 30 | .0591 | 1.50 | .1535 | 3.90 | 4.45 | 14.6 | 18.02 | 26.81 |
| 18 | 1 | 18 | .0402 | 1.02 | .1346 | 3.42 | 6.77 | 22.2 | 13.21 | 19.65 |
| 18 | 16 | 30 | .0465 | 1.18 | .1409 | 3.58 | 7.06 | 23.2 | 13.76 | 20.48 |
| 18 | 7 | 26 | .0465 | 1.18 | .1409 | 3.58 | 7.06 | 23.2 | 13.92 | 20.70 |
| 20 | 1 | 20 | .0320 | 0.813 | .1265 | 3.21 | 10.7 | 35.2 | 10.63 | 15.82 |
| 20 | 10 | 30 | .0374 | 0.95 | .1319 | 3.35 | 11.2 | 36.7 | 11.21 | 16.68 |
| 20 | 21 | 33 | .0374 | 0.95 | .1319 | 3.35 | 11.2 | 36.7 | 11.24 | 16.72 |
| 22 | 17 | 34 | .0299 | 0.76 | .1244 | 3.16 | 18.1 | 59.4 | 9.36 | 13.93 |
| 22 | 7 | 30 | .0311 | 0.79 | .1256 | 3.19 | 18.1 | 59.4 | 9.66 | 14.37 |
| 24 | 7 | 32 | .0240 | 0.61 | .1185 | 3.01 | 28.7 | 94.2 | 8.07 | 12.00 |
| 24 | 11 | 34 | .0240 | 0.61 | .1185 | 3.01 | 28.7 | 94.2 | 8.08 | 12.02 |
| 26 | 7 | 34 | .0197 | 0.50 | .1142 | 2.90 | 45.8 | 150 | 7.18 | 10.68 |
