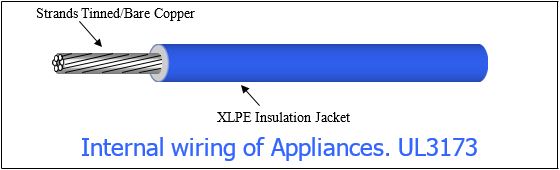

Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL3173 Hook-up Wire

Internal wiring of electronic equipment.

Request a Quote for Style UL3173 Hook-up Wire
  • Conductor material of Tinned or Bare copper
  • Operating temperature -55 ~125
  • Rated Voltage 600 V (Spark voltage 6000 V)
  • Flame resistance VW-1 or FT2
  • RoHS Compliant
  • Meets MIL-W-16878/16B

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)
Number of
Strands
Gauge of
Strands (AWG)
Nom. Dia. of
Stranded Conductor
Nom. Fin. Wire Diam.
Max. Resistance
(dc at 20°C) Ohm/per
Nom. wt.
Inch
mm

Inchmm1000-ftKmLBS./ 1000 ft.Kg/Km
10
105
30
.1181
3.00
.1811
4.60
1.08
3.55
42.08
61.89
10
19
23
.1209
3.07
.1839
4.67
1.08
3.55
43.68
64.24
12
65
30
.0933
2.37
.1563
3.97
1.72
5.64
28.10
41.33
12
19
25
.0992
2.52
.1622
4.12
1.72
5.64
31.16
45.82
14
41
30
.0740
1.88
.1370
3.48
2.73
8.96
19.43
28.58
14
19
27
.0740
1.88
.1370
3.48
2.73
8.96
19.49
28.67
16
7
25
.0602
1.53
.1232
3.13
4.45
14.6
14.26
20.97
16
26
30
.0591
1.50
.1220
3.10
4.45
14.6
13.80
20.34
18
1
18
.0402
1.02
.1031
2.62
6.77
22.2
9.57
14.07
18
7
26
.0465
1.18
.1094
2.78
7.06
23.2
10.08
14.83
18
16
30
.0465
1.18
.1094
2.78
6.77
22.2
9.93
14.60
20
1
20
.0320
0.813
.0950
2.41
10.7
35.2
7.23
10.63
20
10
30
.0374
0.95
.1004
2.55
11.2
36.7
7.64
11.24
20
21
33
.0374
0.95
.1004
2.55
11.2
36.7
7.66
11.27
22
17
34
.0299
0.76
.0929
2.36
18.1
59.4
6.01
8.84
22
7
30
.0311
0.79
.0941
2.39
18.1
59.4
6.26
9.21
24
7
32
.0240
0.61
.0870
2.21
28.7
94.2
4.88
7.18
24
11
34
.0240
0.61
.0870
2.21
28.7
94.2
4.89
7.20
26
7
34
.0197
0.50
.0827
2.10
45.8
150
4.13
6.07
