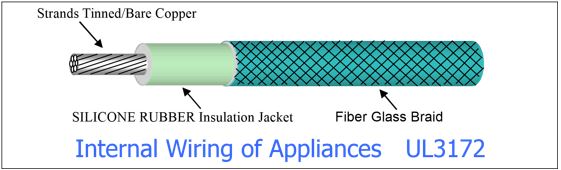

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3172 High Temperature Wire

Internal wiring of electronic equipment

Request a Quote for Style UL3172 High Temperature Wire
  • Conductor material of Tinned, Nickel or Silvered copper
  • “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33 Rated temperature 200 ℃
  • Rated Voltage 600 V (Spark voltage 6000 V)
  • Flame resistance FT2
  • RoHS Compliant
  • Covering for fiberglass braid

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Item
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of StrandsGauge of Strands (AWG)Nom. Dia. of Stranded ConductorNom. Fin. Wire Diam.Max. Resistance (dc at 20°C) Ohm/per
Nom. wt.
Inchmm
Inchmm1000-ft
KmLBS./ 1000 ft.Kg/Km
18
1
18
.0402
1.02
.1150
2.92
6.77
22.2
10.33
15.37
18
7
26
.0465
1.18
.1213
3.08
7.06
23.2
10.89
16.20
*18
16
30
.0465
1.18
.1213
3.08
7.06
23.2
10.73
15.97
*18
19
31
.0465
1.18
.1213
3.08
7.06
23.2
10.81
16.09
*18
41
34
.0465
1.18
.1213
3.08
7.06
23.2
10.81
16.09
20
1
20
.0320
0.813
.1068
2.71
10.7
35.2
7.96
11.85
*20
10
30
.0374
0.95
.1122
2.85
11.2
36.7
8.41
12.51
*20
19
33
.0374
0.95
.1122
2.85
11.2
36.7
8.46
12.58
*20
21
33
.0374
0.95
.1122
2.85
11.2
36.7
8.43
12.54
*22
17
34
.0299
0.76
.1047
2.66
18.1
59.4
6.75
10.04
*22
7
30
.0299
0.76
.1047
2.66
18.1
59.4
6.75
10.04
*24
7
32
.0240
0.61
.0988
2.51
28.7
94.2
5.60
8.33
*24
11
34
.0240
0.61
.0988
2.51
28.7
94.2
5.61
8.34
*26
7
34
.0197
0.50
.0945
2.40
45.8
150
4.82
7.17
