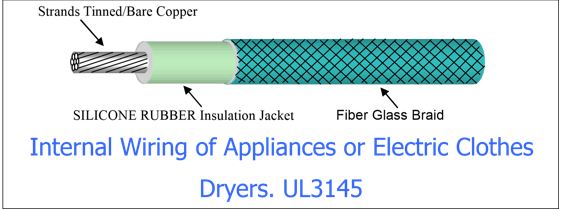

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3145 High Temperature Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3145 High Temperature Wire
- Conductor material of Tinned, Nickel or Silvered copper
- “*”Conductor material used only Nickel or Silvered copper per ASTM B3/33 Rated temperature 200 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Item
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| *12 | 65 | 30 | .0933 | 2.37 | .2311 | 5.87 | 1.72 | 5.64 | 40.68 | 60.53 |
